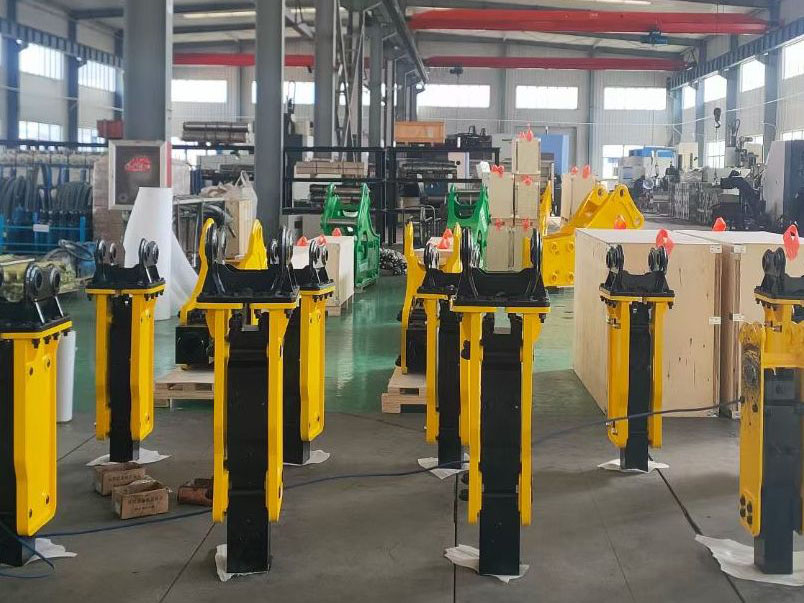

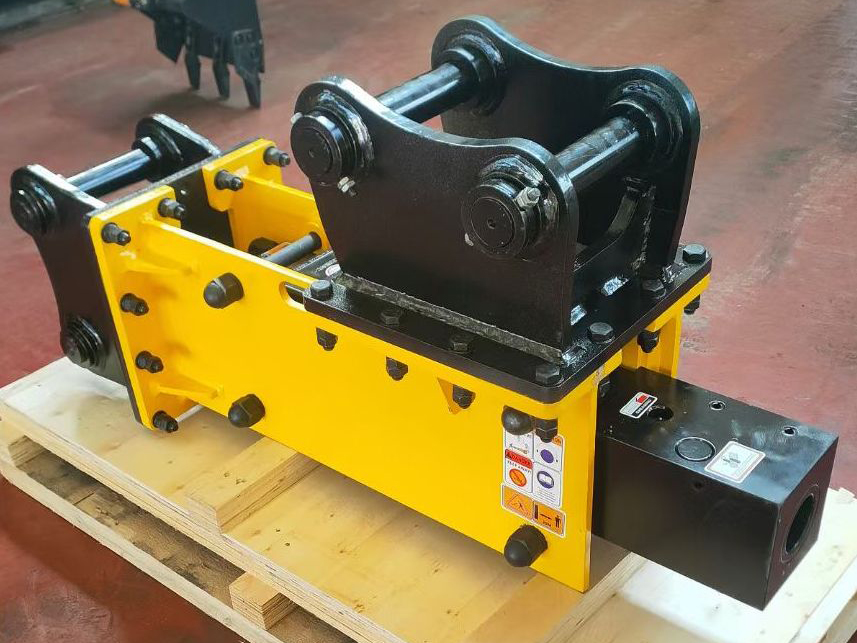

Hydraulic break hammer - external valve type

MAIN SPECIFICATIONS

Model	Chisel diamater		Fit to excacator	Hammer weight side type	Hammer weight top type	Hammer weight box type	Operating pressure	Hydraulic oil flow	Setting pressure	Impact rate	Home diameter
	mm	inch	Ton	kg	kg	kg	bar	l/min	bar	bpm	inch
KE15G	120	4.7	15-18	1230	1350	1300	150-180	90-120	210	400-900	1
KE20G	135	5.3	18-26	1740	1630	1640	160-180	130-150	210	400-800	1
KE30G	150	5.9	27-35	2420	2200	2300	160-180	150-190	230	350-700	1
KE40G	160	6.3	35-50	2900	2800	2700	160-190	190-250	240	300-600	1-1/4
