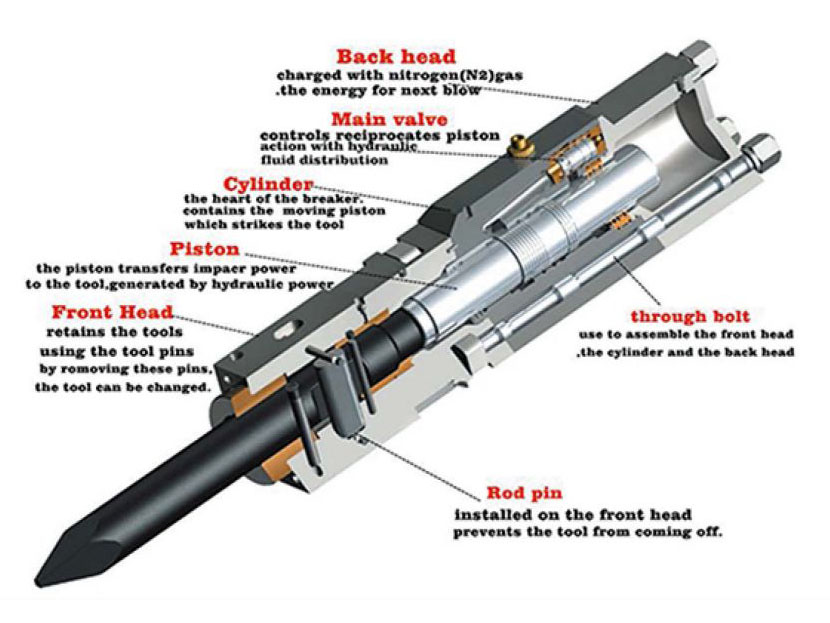

Hydraulic break hammer - internal valve type

MAIN SPECIFICATIONS

Model Numer	Chisel diamater		Fit to excacator		Main body		Hammer weight side type		Hammer weight top type		Hammer weight box type		Operating pressure	Hydraulic oil flow	Blow frequency	Hose diamater	Breaking power
	mm	inch	ton	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg/cm³ psi bar	l/min gal/min	bpm	mm inch	J kg.m
KSEA05-SB06	35	1.38	0.5-1	1102-2205	40	88	65	143	65	143	65	143	90-120, 1280-1706, 88-117	15-25, 4-7	800-1300	12.7, 1/2	720, 74
KSEA10-SB10	40	1.57	1-3	2205-6614	53	117	70	154	70	154	70	154	90-120, 1280-1706, 88-117	15-25, 4-7	800-1300	12.7, 1/2	720, 74
KSEA20-SB20	45	1.77	1.2-3.0	2646-6614	67	148	91	200	91	200	125	276	90-120, 1280-1706, 88-117	20-30， 5-8	700-1200	12.7, 1/2	720, 74
KSEA30-SB30	53	2.08	2.5-4.5	5512-9921	85	187	154	334	154	340	151	333	90-120, 1280-1706, 88-117	25-50， 6.6-13.2	600-1100	12.7, 1/2	720, 74
KSEA35-SB35	60	2.36	2-5	4409-11023	140	308	200	440	280	617	320	705	90-120, 1280-1706, 88-117	25-50， 6.6-13.2	600-1100	12.7, 1/2	720, 74
KSEA40-SB40	68	2.68	4-7	8819-15432	152	335	259	571	339	747	357	787	90-120, 1280-1706, 88-117	40-70， 10.5-18.5	500-900	12.7, 1/2	720, 74
KSEA43-SB43	75	2.95	6-9	13228-19842	210	463	331	730	405	893	446	983	110-140, 1564-1990, 108-137	50-90， 13.1-23.6	400-800	12.7, 1/2	720, 74
KSEA45-SB45	85	3.35	7-14	15432-30864	278	613	554	1221	633	1400	729	1607	120-150, 1706-2133, 118-147	60-100， 15.8-26.3	400-800	19.05, 3/4	980, 100
KSEA50-SB50	100	3.94	10-15	22046-33069	475	1047	757	1669	862	1900	1003	2211	130-160, 1848-2275, 127-157	80-110， 21.1-29.1	350-700	19.05, 3/4	1460, 149
KSEA60-SB60	125	4.92	15-18	33069-39683	616	1358	1273	2806	1304	2875	1367	3014	150-170, 2133-2417, 147-167	80-110， 21.1-29.1	350-700	19.05, 3/4	1460, 149
KSEA70-SB70	135	5.31	16-26	39683-57320	846	1865	1649	3635	1843	4063	1889	4165	160-180, 2275-2559, 157-176	130-150， 34.3-39.6	400-800	25.4, 1	2335, 238
KSEA81-SB81	140	5.51	18-26	39683-57320	916	2015	1763	3887	2055	4063	2007	4425	160-180, 2275-2559, 157-176	120-180， 31.7-47.6	350-500	25.4, 1	4500, 459
KSEA81-SB81A	140	5.51	18-26	39683-57320	952	2099	1805	3979	2090	4608	2007	4425	160-180, 2275-2559, 157-176	120-180， 31.7-47.6	350-500	25.4, 1	4500, 459
KSEA100-SB100	150	5.91	27-35	59525-77162	1088	2399	2214	4666	2376	5238	2453	5417	160-180, 2275-2559, 157-176	150-190， 39.6-50.2	350-700	25.4, 1	4961, 506
KSEA121-SB121	155	6.1	28-36	61729-79366	1309	2886	2573	5672	2750	6063	2964	6535	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-400	31.75, 1-1/4	6800, 704
KSEA131-SB131	165	6.5	30-40	66139-88185	1438	3170	2747	6056	3152	6950	2912	6420	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-400	31.75, 1-1/4	7308, 746
KSEA140-SB140	165	6.5	30-40	66139-88185	1586	3496	3273	7216	3443	7599	2917	6431	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-380	31.75, 1-1/4	7308, 746
KSEA151-SB151	175	6.89	35-40	77162-88185	1929	4253	3901	8600	4053	8935	3898	8954	180-200, 2559-2844, 176-196	210-290, 55.44-76.56	250-350	31.75, 1-1/4	8300, 846
KSEA185	185	7.28	35-45	77162-99208	2411	5315	4376	9647	4809	10602	4809	10602	190-220, 2702-3128, 186-216	220-270， 58.08-71.28	200-250	31.75, 1-1/4	8300, 846
KSEA195	190	7.68	40-45	88185-121254	2626	5789	5039	11109	5164	11382	5164	11383	190-220, 2702-3128, 186-216	220-290， 58.08-76.56	180-200	31.75, 1-1/4	9000, 860
KSEA210	210	8.27	60-80	132278-176370	3396	7487	6683	14734	6993	15417	6993	15417	200-240, 2844-3413, 196-235	290-350， 76.56-92.4	150-200	31.75, 1-1/4	9000, 860
