Wheel excavator
KE6120 Wheel Excavator
KE series wheel excavator offers powerful digging forces, great grade ability and easy maneuverability. They are engineered to help you accomplish more work in less time on comlex, high-traffic jobs, inlcuding roadway construction, utility work and street maintenance projects, and at a lower cost.
Contact Us

MAIN SPECIFICATIONS

Specification1Model
KE6120
2Bucket capacity0.35
3Swing speed
13r/min
4Grade ability°35
5Max bucket digging forceKn55
6Max travel speedkm/h28
7Engine model
YC4FA85-T300
8Engine rated power outputkw/rpm62.5@2200
9Operating weightkg10700
10Fuel tank capacityL160
11Tire
9.00-20
12System pressureMpa26.5
Machine size13Dimension L*W*Hmm7159*2240*3150
14Wheel basemm2400
15Min ground clearancemm310
16Tail swing radiusmm2305

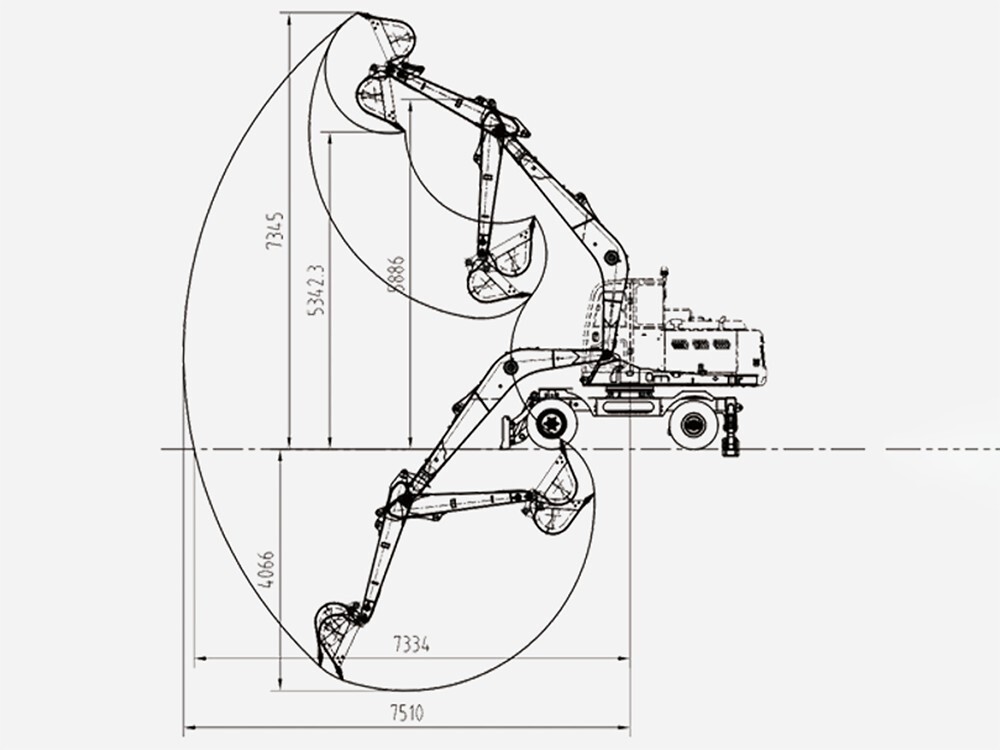

Performance17Max digging heightmm7800
18Max dumping heightmm5900
19Max digging depthmm4050
20Max digging distancemm7652
21Arm lengthmm2300
22Boom lengthmm4200
