Excavator attachments

Turn your excavator into a tool carrier.
Looking for the best excavator attachments in the industry? You come to the right place. With our excavator attachments, we let your excavator become more than just a tool carrier

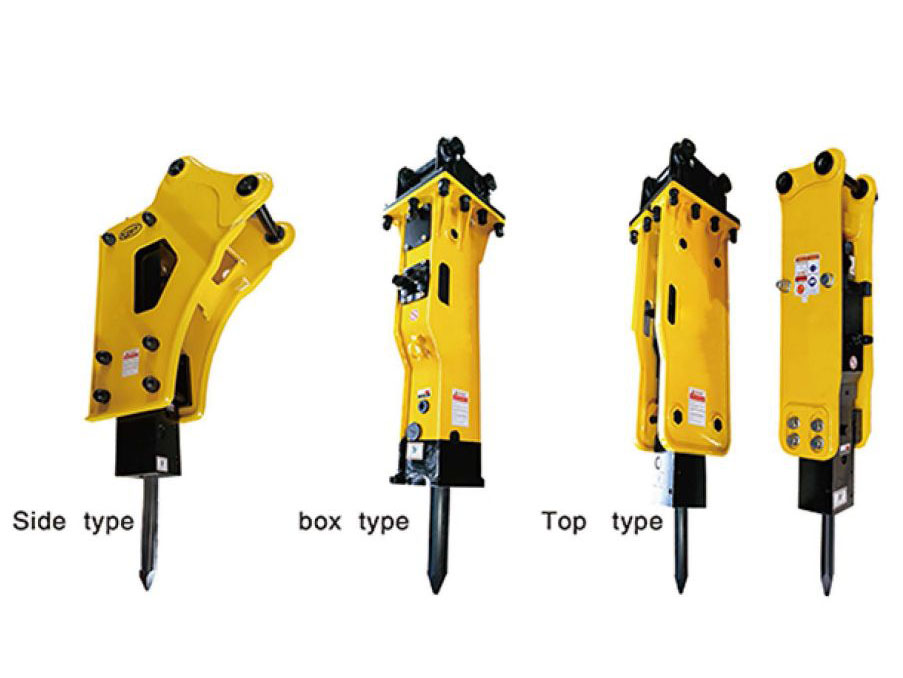

Hydraulic break hammer - internal valve type

Model Numer	Chisel diamater		Fit to excacator		Main body		Hammer weight side type		Hammer weight top type		Hammer weight box type		Operating pressure	Hydraulic oil flow	Blow frequency	Hose diamater	Breaking power
	mm	inch	ton	lb	kg	lb	kg	lb	kg	lb	kg	lb	kg/cm³ psi bar	l/min gal/min	bpm	mm inch	J kg.m
KSEA05-SB06	35	1.38	0.5-1	1102-2205	40	88	65	143	65	143	65	143	90-120, 1280-1706, 88-117	15-25, 4-7	800-1300	12.7, 1/2	720, 74
KSEA10-SB10	40	1.57	1-3	2205-6614	53	117	70	154	70	154	70	154	90-120, 1280-1706, 88-117	15-25, 4-7	800-1300	12.7, 1/2	720, 74
KSEA20-SB20	45	1.77	1.2-3.0	2646-6614	67	148	91	200	91	200	125	276	90-120, 1280-1706, 88-117	20-30， 5-8	700-1200	12.7, 1/2	720, 74
KSEA30-SB30	53	2.08	2.5-4.5	5512-9921	85	187	154	334	154	340	151	333	90-120, 1280-1706, 88-117	25-50， 6.6-13.2	600-1100	12.7, 1/2	720, 74
KSEA35-SB35	60	2.36	2-5	4409-11023	140	308	200	440	280	617	320	705	90-120, 1280-1706, 88-117	25-50， 6.6-13.2	600-1100	12.7, 1/2	720, 74
KSEA40-SB40	68	2.68	4-7	8819-15432	152	335	259	571	339	747	357	787	90-120, 1280-1706, 88-117	40-70， 10.5-18.5	500-900	12.7, 1/2	720, 74
KSEA43-SB43	75	2.95	6-9	13228-19842	210	463	331	730	405	893	446	983	110-140, 1564-1990, 108-137	50-90， 13.1-23.6	400-800	12.7, 1/2	720, 74
KSEA45-SB45	85	3.35	7-14	15432-30864	278	613	554	1221	633	1400	729	1607	120-150, 1706-2133, 118-147	60-100， 15.8-26.3	400-800	19.05, 3/4	980, 100
KSEA50-SB50	100	3.94	10-15	22046-33069	475	1047	757	1669	862	1900	1003	2211	130-160, 1848-2275, 127-157	80-110， 21.1-29.1	350-700	19.05, 3/4	1460, 149
KSEA60-SB60	125	4.92	15-18	33069-39683	616	1358	1273	2806	1304	2875	1367	3014	150-170, 2133-2417, 147-167	80-110， 21.1-29.1	350-700	19.05, 3/4	1460, 149
KSEA70-SB70	135	5.31	16-26	39683-57320	846	1865	1649	3635	1843	4063	1889	4165	160-180, 2275-2559, 157-176	130-150， 34.3-39.6	400-800	25.4, 1	2335, 238
KSEA81-SB81	140	5.51	18-26	39683-57320	916	2015	1763	3887	2055	4063	2007	4425	160-180, 2275-2559, 157-176	120-180， 31.7-47.6	350-500	25.4, 1	4500, 459
KSEA81-SB81A	140	5.51	18-26	39683-57320	952	2099	1805	3979	2090	4608	2007	4425	160-180, 2275-2559, 157-176	120-180， 31.7-47.6	350-500	25.4, 1	4500, 459
KSEA100-SB100	150	5.91	27-35	59525-77162	1088	2399	2214	4666	2376	5238	2453	5417	160-180, 2275-2559, 157-176	150-190， 39.6-50.2	350-700	25.4, 1	4961, 506
KSEA121-SB121	155	6.1	28-36	61729-79366	1309	2886	2573	5672	2750	6063	2964	6535	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-400	31.75, 1-1/4	6800, 704
KSEA131-SB131	165	6.5	30-40	66139-88185	1438	3170	2747	6056	3152	6950	2912	6420	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-400	31.75, 1-1/4	7308, 746
KSEA140-SB140	165	6.5	30-40	66139-88185	1586	3496	3273	7216	3443	7599	2917	6431	180-200, 2559-2844, 176-196	200-260， 52.8-68.6	250-380	31.75, 1-1/4	7308, 746
KSEA151-SB151	175	6.89	35-40	77162-88185	1929	4253	3901	8600	4053	8935	3898	8954	180-200, 2559-2844, 176-196	210-290, 55.44-76.56	250-350	31.75, 1-1/4	8300, 846
KSEA185	185	7.28	35-45	77162-99208	2411	5315	4376	9647	4809	10602	4809	10602	190-220, 2702-3128, 186-216	220-270， 58.08-71.28	200-250	31.75, 1-1/4	8300, 846
KSEA195	190	7.68	40-45	88185-121254	2626	5789	5039	11109	5164	11382	5164	11383	190-220, 2702-3128, 186-216	220-290， 58.08-76.56	180-200	31.75, 1-1/4	9000, 860
KSEA210	210	8.27	60-80	132278-176370	3396	7487	6683	14734	6993	15417	6993	15417	200-240, 2844-3413, 196-235	290-350， 76.56-92.4	150-200	31.75, 1-1/4	9000, 860

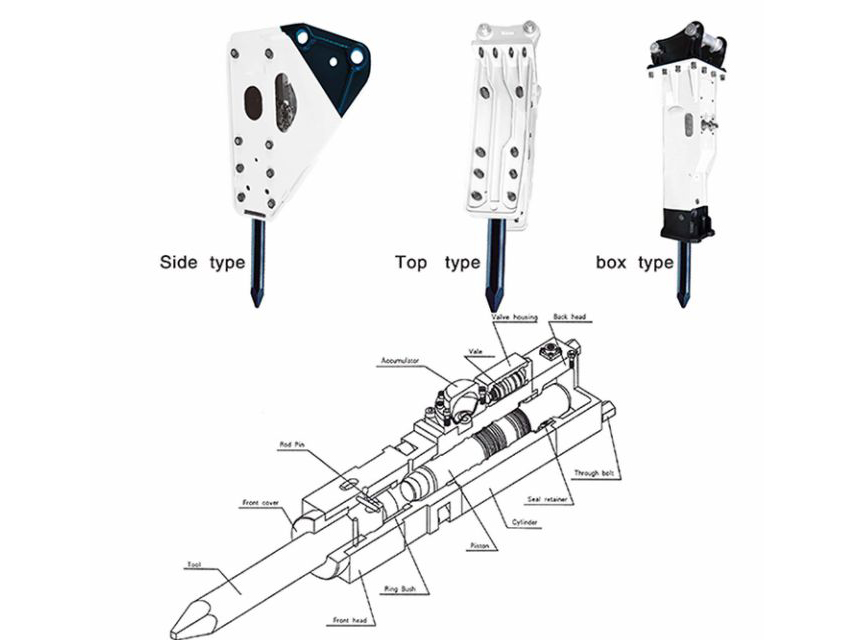

Hydraulic break hammer - external valve type

Model	Chisel diamater		Fit to excacator	Hammer weight side type	Hammer weight top type	Hammer weight box type	Operating pressure	Hydraulic oil flow	Setting pressure	Impact rate	Home diameter
	mm	inch	Ton	kg	kg	kg	bar	l/min	bar	bpm	inch
KE15G	120	4.7	15-18	1230	1350	1300	150-180	90-120	210	400-900	1
KE20G	135	5.3	18-26	1740	1630	1640	160-180	130-150	210	400-800	1
KE30G	150	5.9	27-35	2420	2200	2300	160-180	150-190	230	350-700	1
KE40G	160	6.3	35-50	2900	2800	2700	160-190	190-250	240	300-600	1-1/4

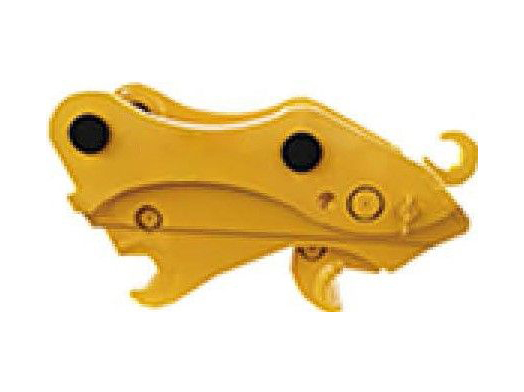

Quick hitch coupler

Model	Length (mm)	Width (mm)	Height (mm)	Arm width (mm)	Pins center distance (mm)	Pin diameter (mm)	Cylinder stroke (mm)	Vertical pins control distance (mm)	Weight (kg)	Working pressure (kgf/c㎡)	Necessary flow (l/min)	Fit to excavator (ton)
KS-mini	300-450	150-250	225-270	82-180	95-220	20-45	95-200	170-190	30-40	30-400	10-20	1-4
KS-02	520-542	260-266	312	155-172	220-275	40-45	200-300	200-210	50-75	30-400	10-20	4-6
KS-06	760	351-454	400	230-317	350-400	50-70	340-440	240-255	170-210	30-400	10-20	12-16
KS-08	920-955	450-483	512	290-345	430-480	70-90	420-510	300	350-390	30-400	10-20	18-25
KS-08S	950-1000	445-493	512-540	300-350	450-505	90	450-530	320	370-410	30-400	10-20	25-26
KS-10	965-1100	543-572	585	345-425	485-530	90-100	460-560	350-370	410-520	30-400	10-20	26-30
KS-17	1005-1150	602-666	560-615	380-480	520-630	100-110	500-650	370-380	55-750	30-400	10-20	30-40

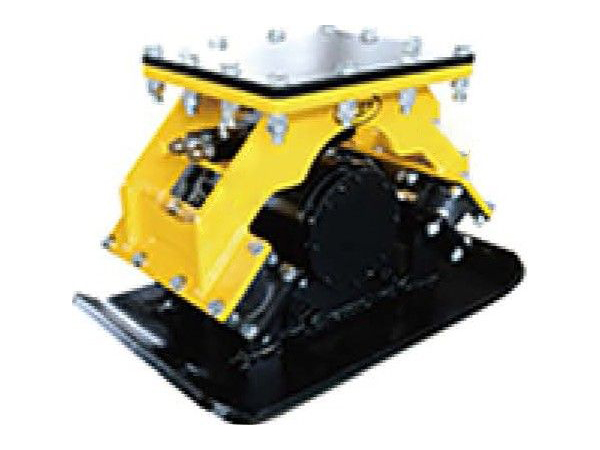

Hydraulic plate compactor

Model	Fit to excavator (ton)	Height (mm)	Width (mm)	Impulse force (ton)	Vibration frequency (rpm)	Oil flow (l/min)	Operating pressure (kg/c㎡)	Bottom measurement (mm)	Weight (kg)
KEMINI	1-5	600	415	3	2000	30-60	100-130	800*420	180-220
KECT02/04	6-10	750	550	4	2000	45-85	100-130	900*550	200-350
KECT06	11-19	930	700	6.5	2000	85-105	100-150	1160*700	650-750
KECT08	20-29	1000	900	11	2200	120-170	150-200	1350*900	900-1000
KECT10	30-40	1100	900	15	2200	120-170	150-200	1500*1000	1100-1300

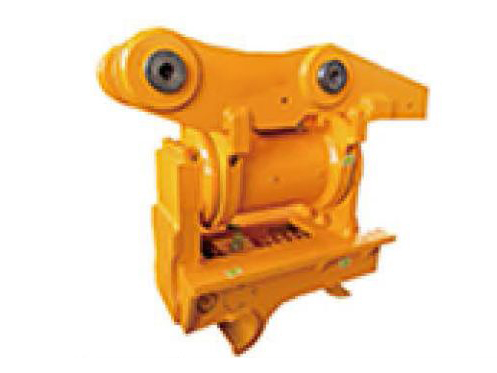

180°Quick hitch coupler

Model	Fit to excavator (ton)	Swing angle (°)	Torque (N.m)	Pressure (bar)	Swing flow (lpm)	Quick coupler working pressure (bar)	Working Hydraulic flow (lpm)	Overall dimensions LWH (mm)	Weight (kg)
KS08	0.8-1.9	180	930	210	2-4	25-300	15-25	470280567	55
KS20	2-3.5	180	2870	210	5-16	25-300	15-25	477280567	1122
KS36	3.6-6	180	4400	210	5-16	25-300	15-25	518310585	156
KS36S	3.6-6	180	7190	210	5-16	25-300	15-25	541350608	176
KS70	7-9	180	4400	210	5-16	25-300	15-25	582350649	170
KS70S	7-9	180	7190	210	15-44	25-300	15-25	582350649	208
KS100	10-15	180	10623	210	19-58	25-300	15-25	720450784	413
KS160	16-20	180	14600	210	22-67	25-300	15-25	800530864	445
KS210	21-25	180	18600	210	35-105	25-300	15-25	858500911	655

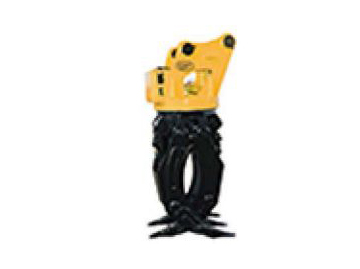

Double cylinder Grapple
Model Width B Width A Height Max opening width Weigth (kg) Cylinder pressure
KS04 420 240 1400 1400 415 30-55
KS06 500 350 1800 1600 800 90-110
KS08 700 480 2300 2300 1000 130-170

Hydraulic Pulverizer

Model	Fit to excavator (ton)	Weight (kg)	Opening (mm)	Height (mm)	Width (mm)	Length (mm)	Pressure (kgf/c㎡)	Flow (l/min)	Crushing force (ton)
									Middle	Tooth
KS-HP06	12-16	1410	610	1900	420	1215	300	220	70-85	60-75
KS-HP08	17-24	1650	745	2050	560	1631	320	240	100-115	75-95
KS-HP10	25-35	2750	998	3100	680	1960	320	240	100-125	85-105

Excavator magnet

Model	Diameter (mm)	Weight (kg)	Fit to excavator (ton)	Generator power (kw)	Working flow (lpm)	Working pressure (bar)	Lifting capability
							Steel sheet	Other scraps
KS-HM700	700	1400	6-9	0.6	50-100	180	≤1000kg	≤100kg
KS-HM1000	1000	1600	10-15	10	90-110	190	1-2 ton	100-200 kg
KS-HM1200A	1200	1860	16-25	10	100-140	200	3-4 ton	150-250 kg
KS-HM1200B	1200	1860	16-25	15	100-140	200	3-4 ton	150-250 kg

Single cylinder singer motor Rotating stong/scrap steel grapple

Model	Fit to excavator	Weight (kg)	Max opening (mm)	Height (mm)	Width (mm)	Pressure (bar)	Working flow (lpm)	Rotation angle (°)
KS-SG02S	4-6	350	1200	1100	550	110-140	30-55	360
KS-SG04S	7-9	495	1400	1300	600	120-160	50-100	360
KS-SG06S	10-16	950	1600	1550	850	150-180	90-110	360
KS-SG08S	17-25	1680	1850	1850	1000	160-180	100-140	360

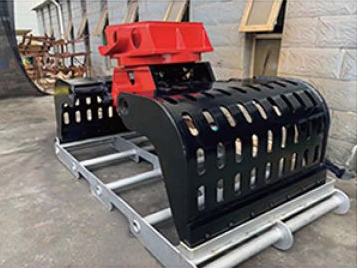

Double cylinder Rotating stong/scrap steel grapple

Model	Fit to excavator	Weight (kg)	Max opening (mm)	Height (mm)	Width (mm)	Cylinder volume (ton)	Rotation angle (°)
KS-SG04D	4-6	380	1400	1200	450	4.5*2	360
KS-SG06D	10-18	750	1600	1500	600	8.0*2	360
KS-SG08D	19-30	1500	1800	1700	800	10.0*2	360

Excavator pile driver hammer

Model	Frequency (rpm)	Eccentric torque (N.m)	Excitation force (ton)	Hammer weight (kg)	Arm weight (kg)	Working pressure (bar)	Hydraulic flow (lpm)	Max piling length (m)	Fit to excavator (ton)
KS06	2600	28	24	1300	500	220	150	6	15-18
KS08	2800	40	38	2200	800	280	160	9	18-25
KS10	2800	50	45	2500	800	280	180	13	26-35
KS14	2800	70	65	2800	800	300	210	16	36-45

Auger drill

Model	Fit to excavator weight (ton)	Max torque (N.m)	Working pressure (bar)	Working flow (lpm)	Rotating speed (rpm)	Hose size (inch)	Unit weight (kg)	Unit diameter (mm)	Drill pipe length (mm)	Diameter range (mm)
KS2000	1.5-3	2130	50-120	20-100	72	G1/2	42	190	1200-1500	100-300
KS2500	2.5-4	2870	80-240	30-120	65	G1/2	72	232	1200-1500	100-500
KS3500	2.5-4.5	3650	80-240	30-120	62	G1/2	74	232	1200-1500	100-500
KS4500	3-5	4720	80-240	40-150	55	G1/2	95	238	1200-1500	100-600
KS5000	4.5-6	4920	80-240	40-150	54	G1/2	97	238	1200-1500	100-600
KS6000	4.5-6	6150	80-240	50-200	50	G1/2	134	245	1200-1500	100-800
KS8000	7-10	8420	80-240	60-240	45	G3/4	168	272	1200-1500	200-1000
KS15000	10-15	15800	80-260	80-260	38	G1	240	330	1200-1500	200-1000
KS20000	15-20	19200	80-260	80-280	35	G1	262	345	1200-1500	300-1200

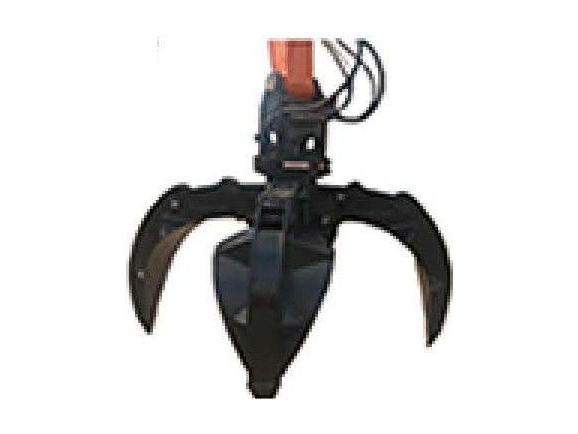

Peel grapple/clamp

Model	Cylinder thrust force (ton)	Working pressure (Mpa)	Capacity closed (m³)	Capacity open (m³)	Fit to excavator (ton)	Weight (kg)
KS01	3.14	16-20	0.1	0.39	3-4	200-250
KS02/04	3.14	16-20	0.15	0.61	4-9	400-600
KS06	5.6	18-23	0.25	1.08	12-16	900-1100
KS08	9	18-23	0.6	2.24	17-25	1200-1500
KS10	15.7	20-25	0.9	2.99	26-35	1800-2200

Demolition and sorting grapple

Model	Rotation angle (°)	Motor pressue (bar)	Motor flow (lpm)	Cylinder force (ton)	Cylinder pressure (bar)	Working flow (lpm)	Fit to excavator (ton)	Weight
KS01	360	90-110	20-35	4	110-140	25-40	3-4	200-220
KS02	360	110-120	30-55	8	160-200	30-55	4-6	310-330
KS04	360	110-120	30-55	9	160-200	50-100	6-9	440-460
KS06	360	130-150	40-70	15	180-230	90-110	12-16	900-960
KS08	360	130-150	40-70	16	180-230	100-140	17-25	1350-1500
KS10	360	130-150	40-70	18	200-250	90-150	26-35	1700-2100

Rake
Model Length (mm) Width (mm) Height (mm) Fit to excavator (ton) Weight (kg)
KS04 800 500 550 6-8 100
KS06 1000 600 700 10-15 250
KS08 1300 1000 800 20-25 800
KS10 1500 1200 1000 30-36 1100
KS17 1700 1400 1200 40-50 1500

Excavator tree shear

Model	Excavator Weight	Body Width	Max Opening	Blade Thicknes	Max Cutting Diameter	Weight
KS200	2-4tons	665mm	535mm	HB500 18mm	200mm	200 kg
KS300	5-10 tons	825mm	585mm	HB500 20mm	300mm	365 kg
KS350	10-25 tons	1080 mm	825mm	HB500 20mm	350mm	880 kg

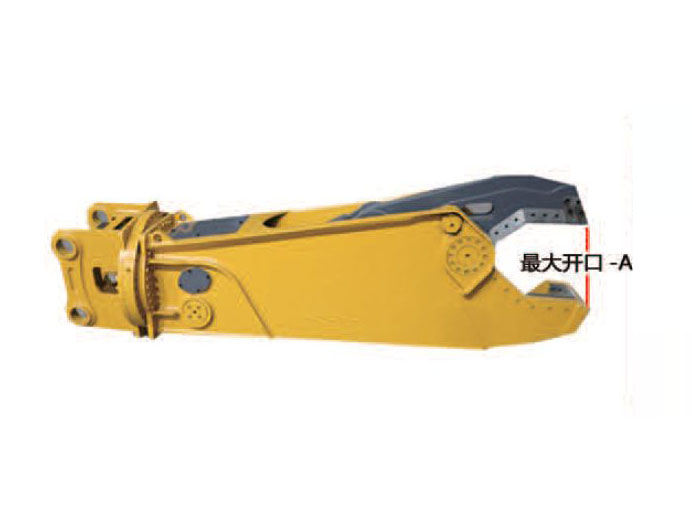

Double cylinder hydraulic scrap shear

Model	Weight	Max cutting cylinder oil pressure (bar)	Max cutting cylinder oil flow (lpm)	Max rotation oil pressure (bar)	Max rotation oil flow (lpm)	Cutting Force - Z (ton)	Cutting Force - Y (ton)	Cutting Force - X (ton)	Max opening width (mm)	Total Length - L (mm)	Fit to excavator (Arm Mounted) (ton)	Fit to excavator (Boom Mounted) (ton)
KS08	2148	320-350	150-200	100-115	30-40	73-81	133-141	301-333	480	3077	18-30	10-18
KS10	3360	320-350	200-250	100-115	30-40	116-138	219-253	534-506	572	3509	30-40	20-25

Bucket thumb

Model	Weight (kg)	Max opening (mm)	Working pressure (bar)	Working flow (lpm)	Cylinder volume (ton)	Fit to excavator (ton)
KS02	180	818	100-130	25-40	4	2-3
KS03	360	1150	110-140	30-55	5.4	4-6
KS04	520	1380	120-160	50-100	5.4	7-11
KS06	840	1550	150-170	90-110	8.2	12-16
KS08	1430	2220	160-180	100-140	10	17-23
KS10	1860	2235	160-180	130-170	12	24-30


