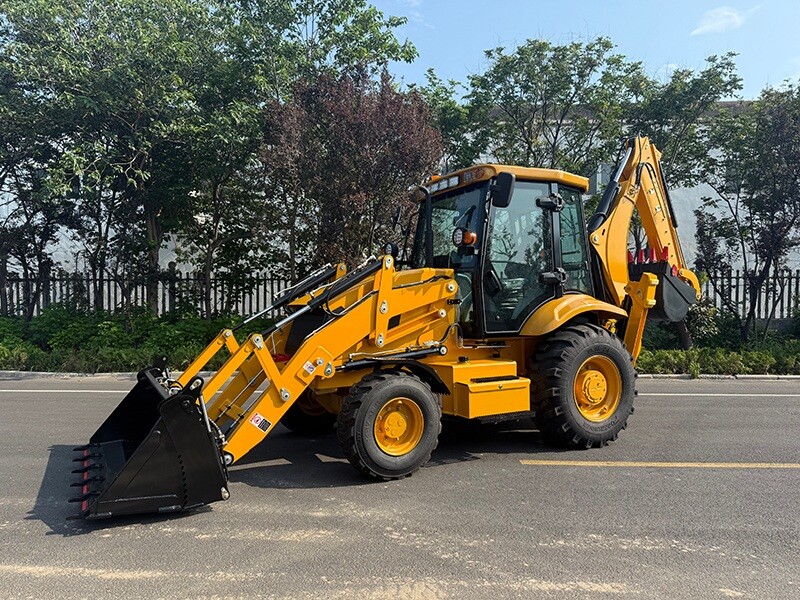

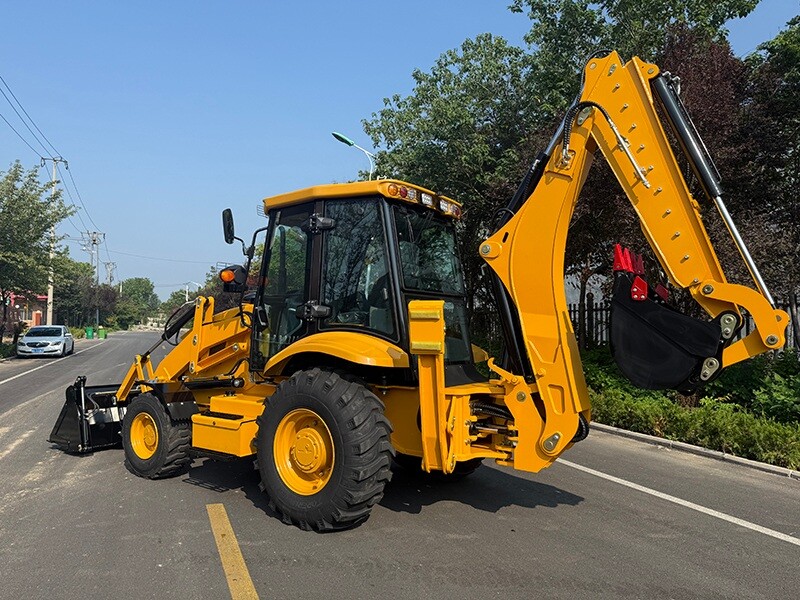

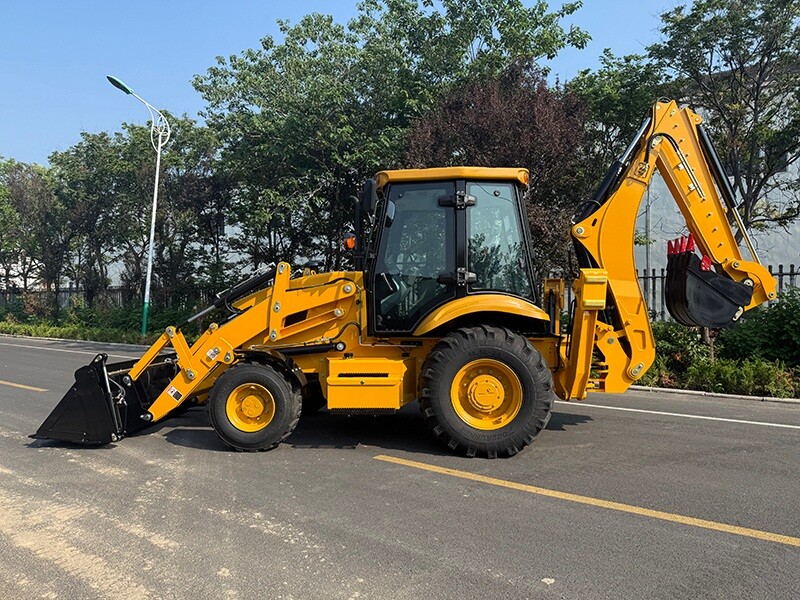

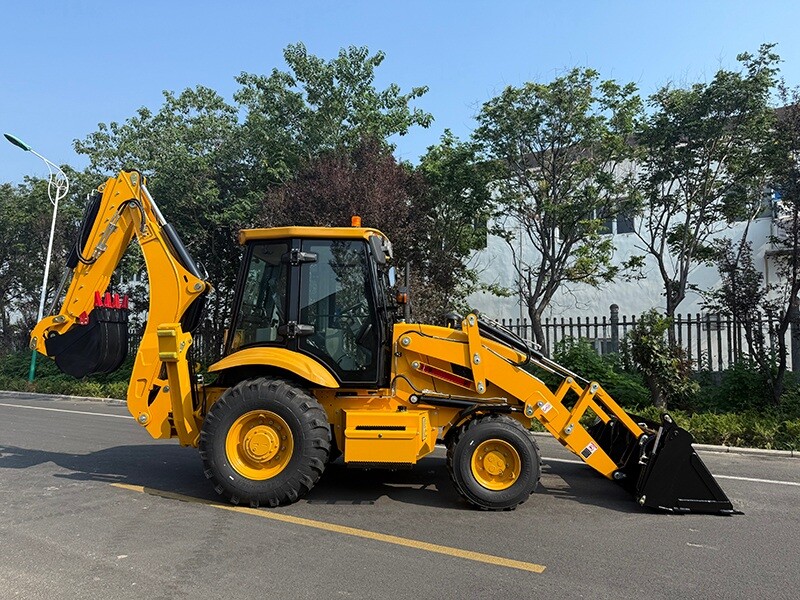

KS420H Side shift backhoe loader

Helping you get more done with a single machine

MAIN SPECIFICATIONS

KS420H main specifications
Dimensions	1	Length	7560mm
	2	Overall width	2360mm
	3	Height (To the top of the cab)	2900mm
	4	Wheel base	2290mm
	5	Wheel Tread	1900/1880mm (front/rear)
Loading performance	6	Rated load	2000KG
	7	Operating weight	7300kg
	8	Rated bucket capacity	1.0m³
	9	Max. dump height	2740mm
	10	Bucket dumping distance	1015mm
	11	Max breakout force	54KN
	12	Max Tractive force	56KN
	13	Min Turning radius	6581mm
Digging performance	14	Rated digging bucket capacity	0.3m³
	15	Max. digging depth	4010mm
	16	Arm swing angle	190°
Engine	17	Model	YUCHAI 4105
	18	Type	water cooled
	19	Rated power	85kw@2400rpm
	20	Engine torque output	410Nm@1500rpm
	21	Fuel tank capacity	100L
Hydraulic	22	Hydraulic flow	110L/min
	23	Working hydraulic pressure	20Mpa
	24	Hydraulic tank capacity	100L
Transmission	25	Transmission	Fixed Shaft Power Transmission
	26	Gear shift	2 foward, 2 reverse
	27	Max speed	28km/h
Specifications and characteristics are subject to change without notice. Please contact us for detailed information.
