Telehandler

K3000T PLUS

9200kg
3000kg

Powerful Telehandler:
Made for the harshest applications

Contact Us

Good accessibility for daily maintenance:

A wide opening gas-assisted engine hood makes the daily maintenance much easier.
With only one hand, the engine hood can be widely opened for regular service and maintenance work. Engine oil filter, diesel oil filter, air filter, oil dipstick and coolant as well as the pressure test ports can therefore be accessed very quickly and easily.

图片 1.jpg
图片 2.png

Safe load sensing system

Safe loading system as standard configuration enables precise and intersecting movements.

K3000T Plus Telehandler highlights at a glance

Versatility

With its 9.5 meter lifting height, payload of 3 tons, and great maneuver-ability the K3000T is designed for a broad range of work.


Good working enviroment

Thanks to heating and ventilation system with fans, AC system, adjustable steering column, electronically controlled joystick, arm rest, which makes a perfect working area that motivates and supports the operator.

Differential lock

Can choose differential lock option in either front or rear axle, which provides ultimate traction and performance in muddy ground.

Three steering modes

With all wheel,crab and front-wheel steering.
The machine is particularly manoeuvrable and stable.

Safe load sensing system

Load sensing system as standard configuration ensures the machine safety performance.

Excellent visibility

The optimally designed cabin in combination with 3 cameras  gives excellent all-round visibility of the entire work area all of the time.

Powerful Cummins engine

With max power 74kW and peak toruqe 380Nm output

Good serviceability

With only one hand, the engine hood can be widely opened for regular service and maintenance work. Engine oil filter, diesel oil filter, air filter, oil dipstick and coolant as well as the pressure test ports can therefore be accessed very quickly and easily.

Flexibility in use

The right steering type for every application

The three steering types: all-wheel, front wheel and crab steering  are available on K3000T for maximum flexibility in the most diverse applications. No matter whether manoeuvring in the smallest space, driving at speed on the road or guiding special attachments, the appropriate steering type can be selected for each application.


All wheel steering

Total maneuverability and power in the smallest of areas

Front steering

Safe driving, even at higher speed.

Crab steering

Driving sideways for ultra-precise maneuvering in confined spaces, such as pushing work against walls.

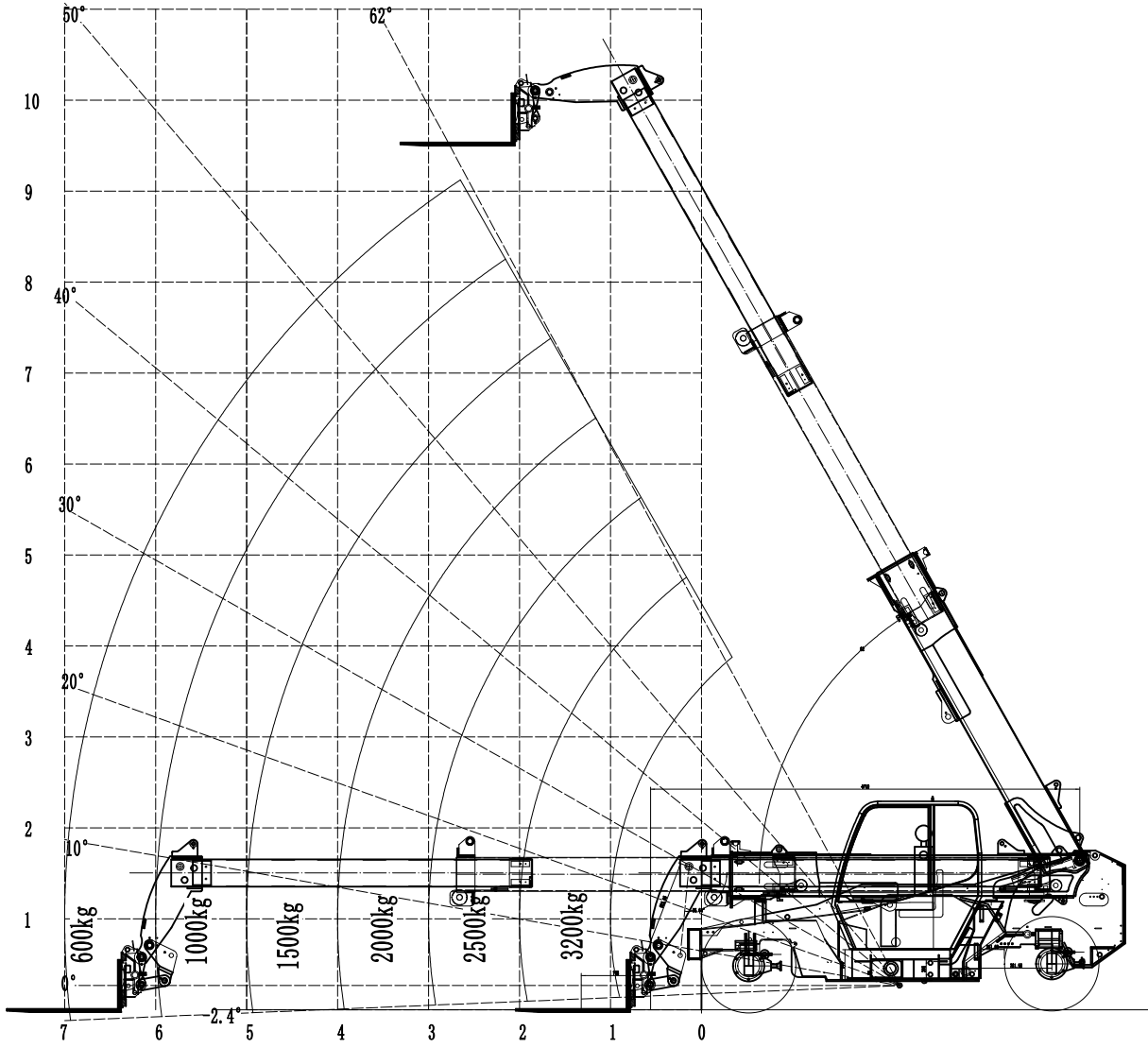

Loading diagram

MAIN SPECIFICATIONS

Performance1    Rated load kg3000
2  Rated loading (Max extension)kg600
3   Overall weight kg9200
4     Standard bucket capacity CBM1.8
5  Maximum tractive force kN48
6    Maximum breakout force kN19KN
7 Maximum grade ability%25
8  Maximum dump heightmm9000
9   Maximum dump reachmm1590
10  Overall dimension (L×W×H) mm7000*2250*2280 (with bucket)
11Minimum turning radius (outside of wheels)mm5640
12Maximum steering angle°30°
13Oscillation angle°
Engine14Model
Cummins 4BT3.9-C100
15Aspirtion
charged, inter-cooled
16Cylinders
4
17      Displacement L3.9
18     Rated powerkw@RPM75kw@2400
19Peak torque Nm@RPM330Nm@1500
20Emission standard
NS II
Transmission system21   Torque converter mode
280
22   Gearbox mode
  Fixed shaft, constant mesh power-shift
24Gear shift number
Mechanical,  4forward, 4reverse
25    maximum speedkm/h35
Drive axle26 Main reducing mode
Bevel gear grade l reduction
27   Wheel base mm3331
28Wheel treadmm1860
29Min ground clearancemm260
 Hydraulic system30System working pressure Mpa20
31hydraulic flowl/min120
32  Boom lifting time s9
33   Total time s19
34 Tank capacityL80
Brake system35  Service brake
Air brake
36   Parking brake
Air cut brake
Tire37Tire size
16/70-24
38    Front tire pressure kPa350
39  Rear tire pressure kPa350
Specifications and characteristics are subject to change without notice. Please contact us for detailed information.
