Backhoe Loade

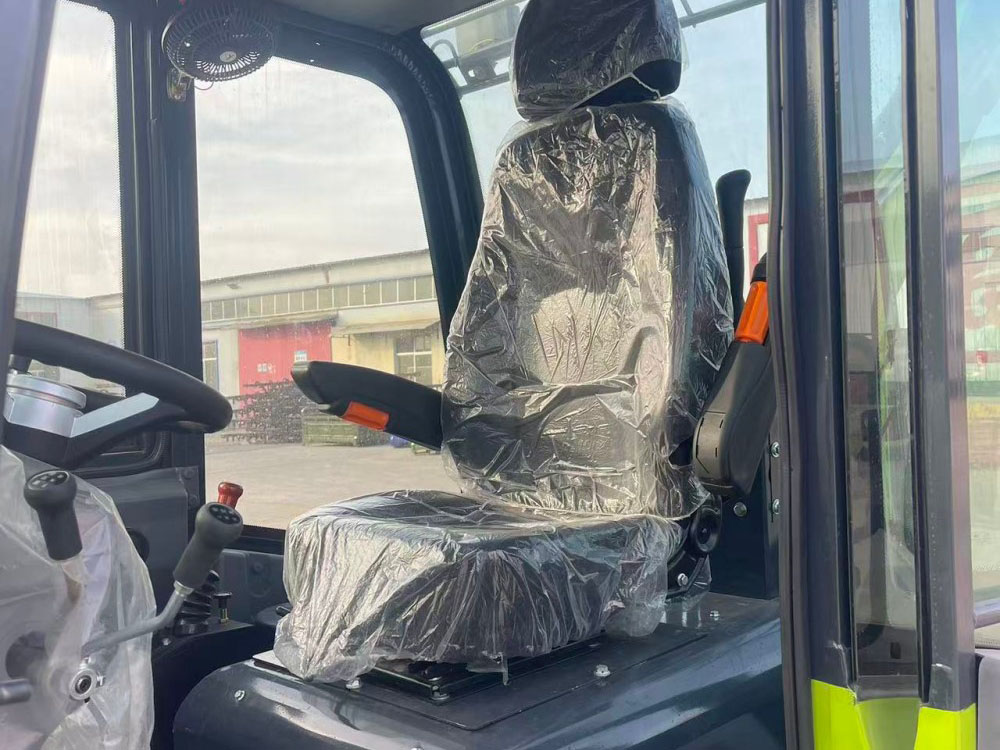

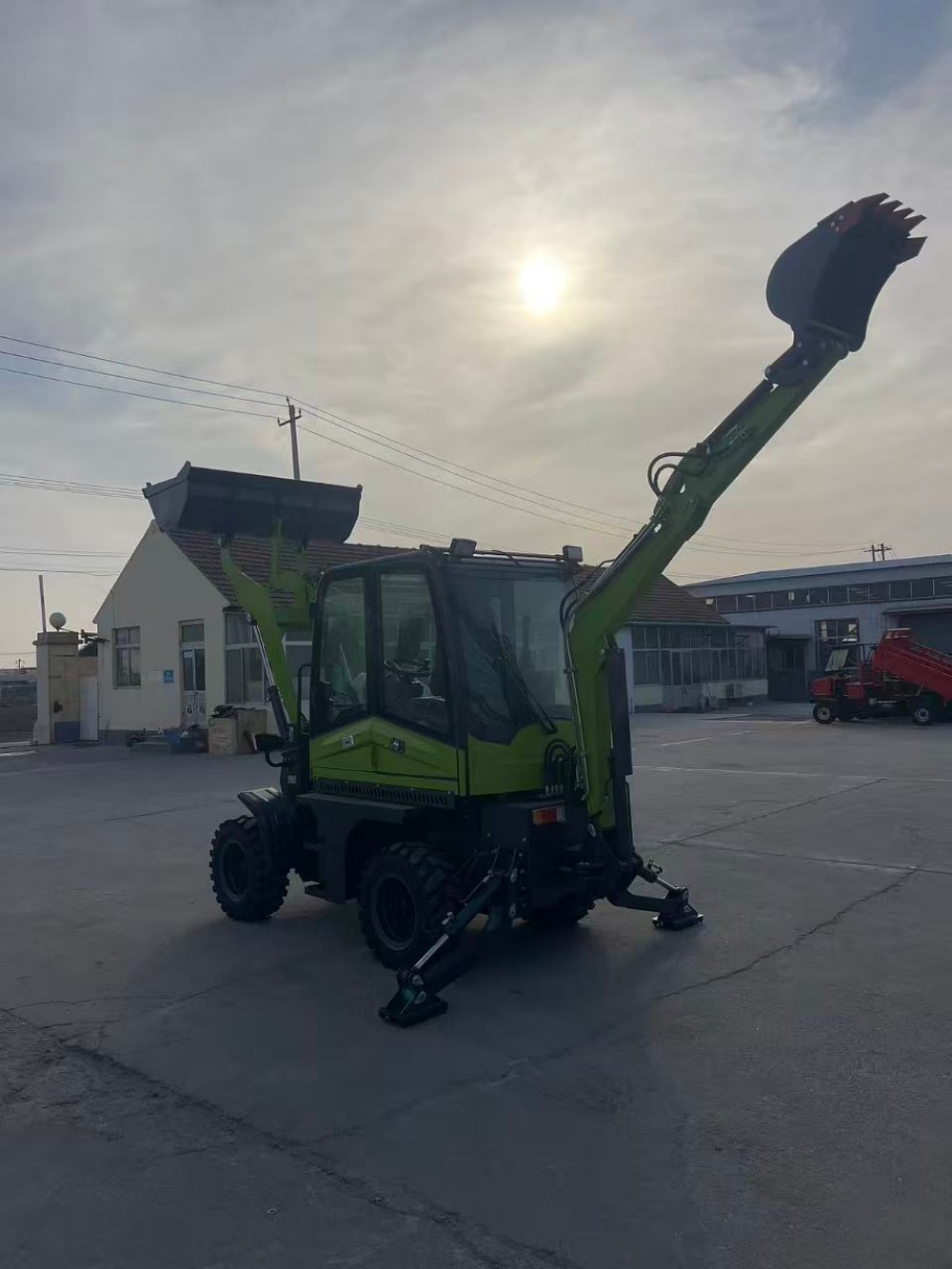

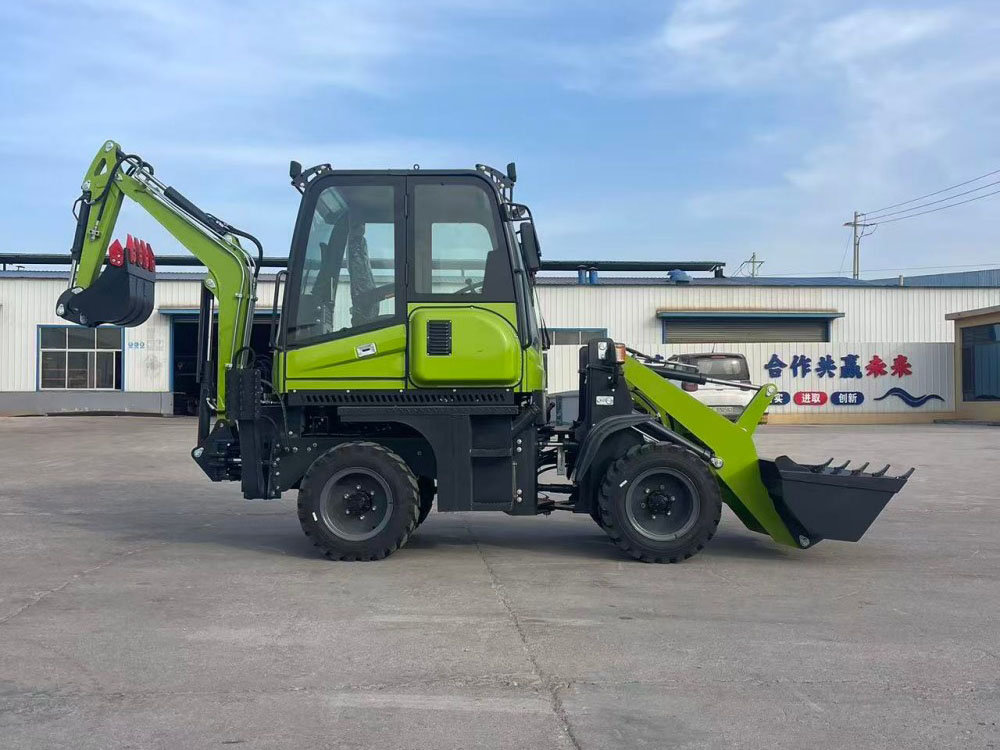

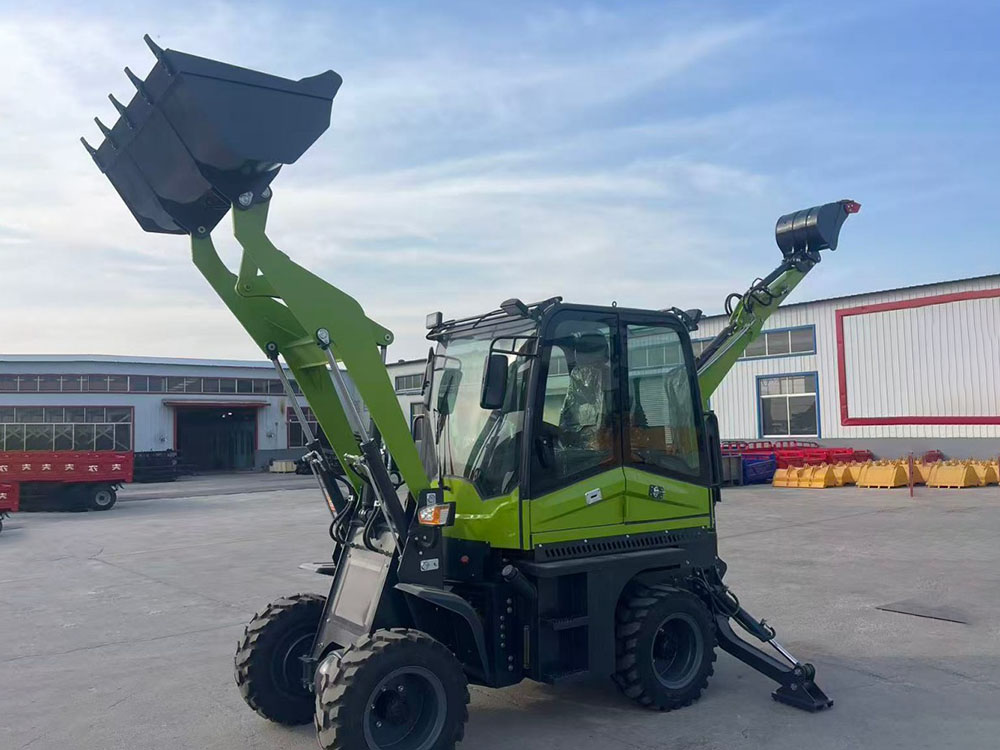

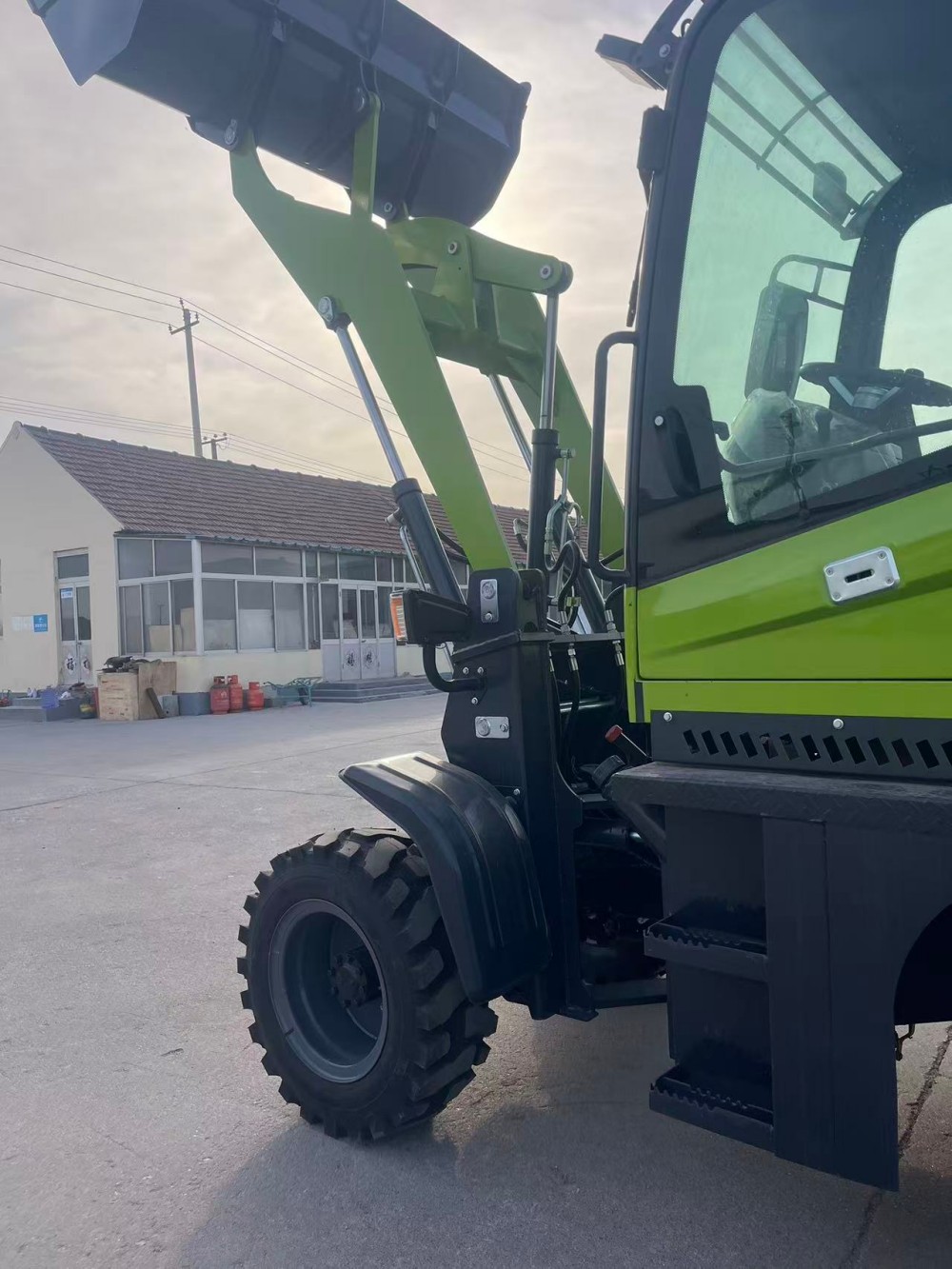

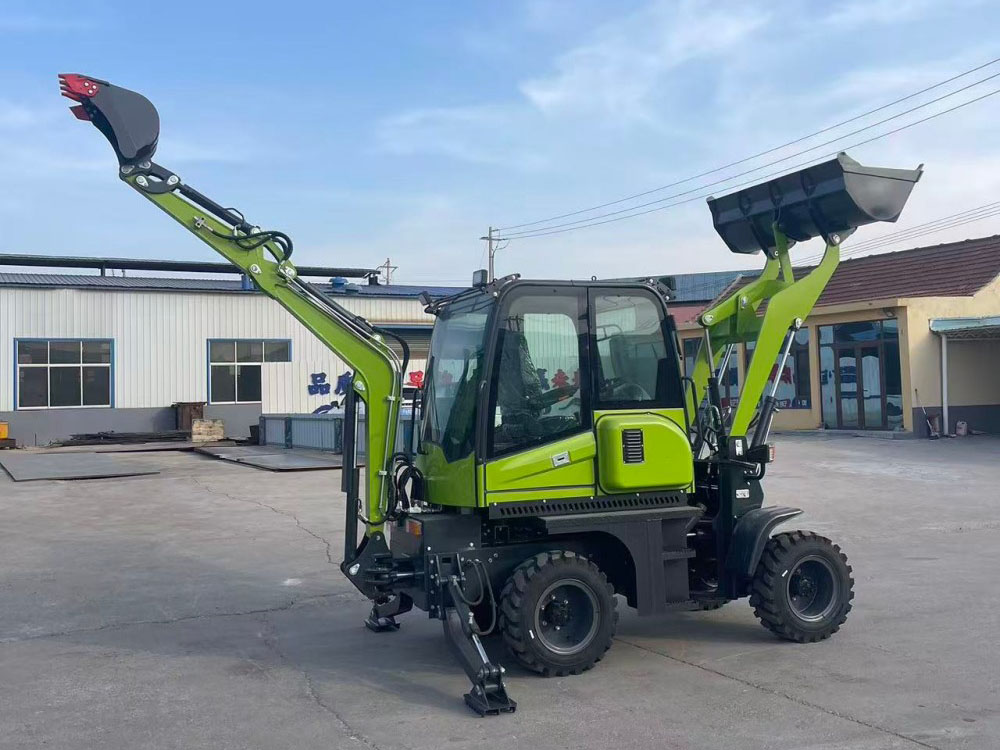

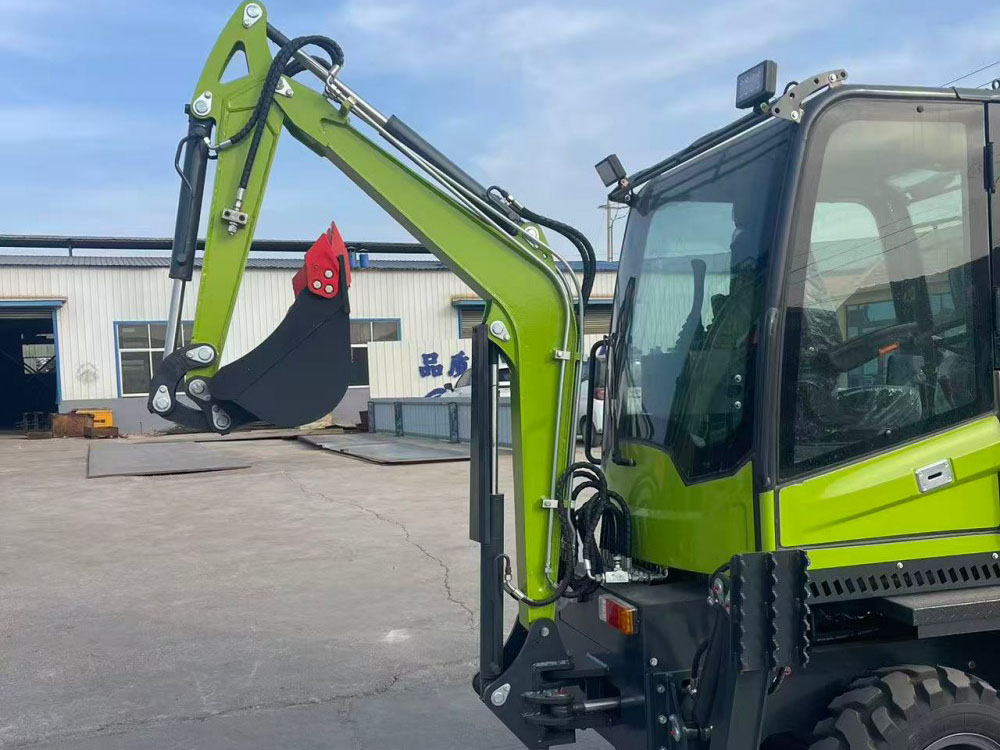

KS18-20 backhoe loader
2600kg
800kg
Contact Us

MAIN SPECIFICATIONS

KS18-20 main specifications
Dimensions1Length5100mm
2Overall width2100mm
3Height (To the top of the cab)2600mm
4Wheel base1850mm
5Min ground clearance200mm
6Tire size10.5/46-16
7Wheel Tread1200mm
Loading performance8Rated load800kg
9Operating weight2600kg
10Rated bucket width1.5m
11Max. dump height2400mm
12Min Turning radius4500mm
Digging performance13Rated digging bucket500*450*300mm
14Max. digging depth2000mm
15Max digging height3600mm
16Max digging distance3550mm
Engine17ModelYunnei 490
18Typewater cooled
19Rated power37kw@2400rpm
Transmission20Transmission265 torque converter
21Gear shift2 foward, 2 reverse
22Max speed20km/h
Specifications and characteristics are subject to change without notice. Please contact us for detailed information.
