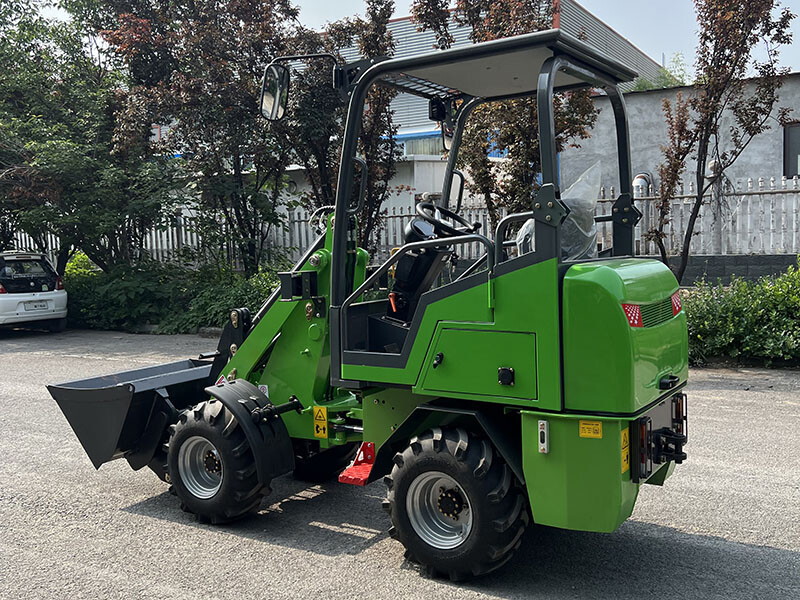

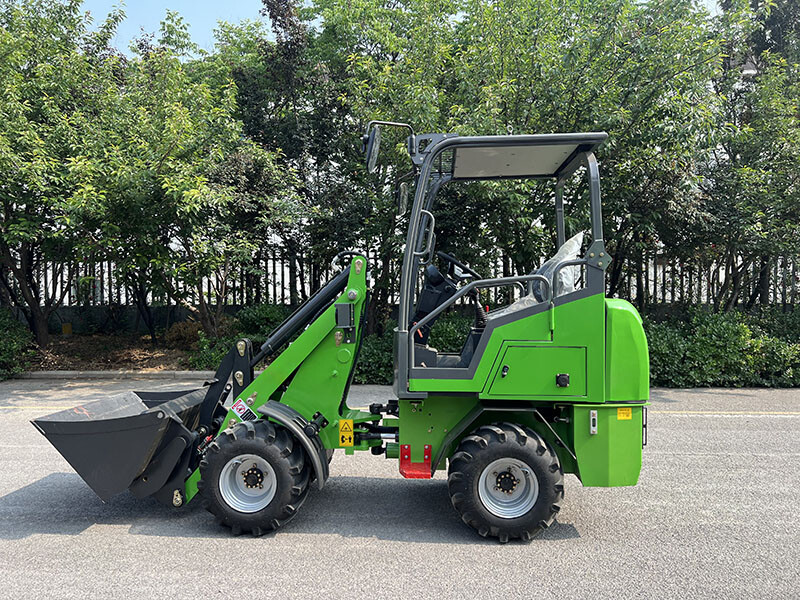

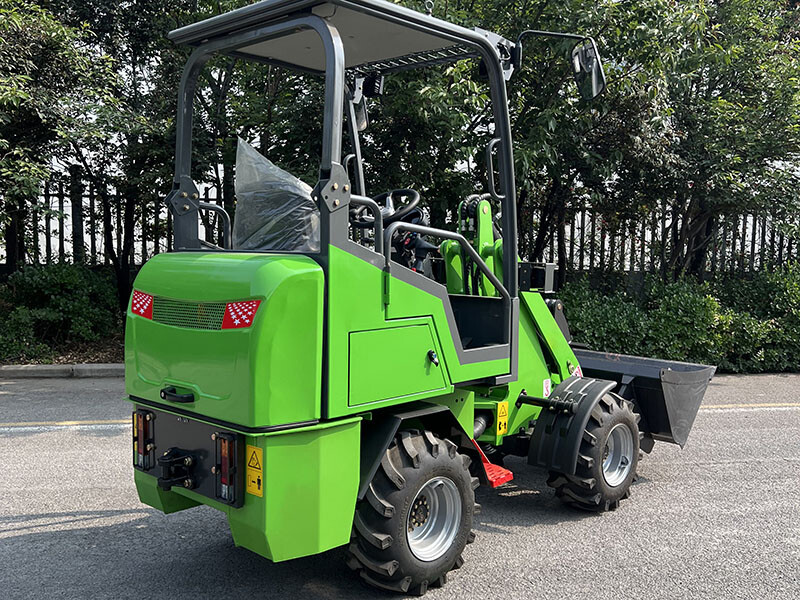

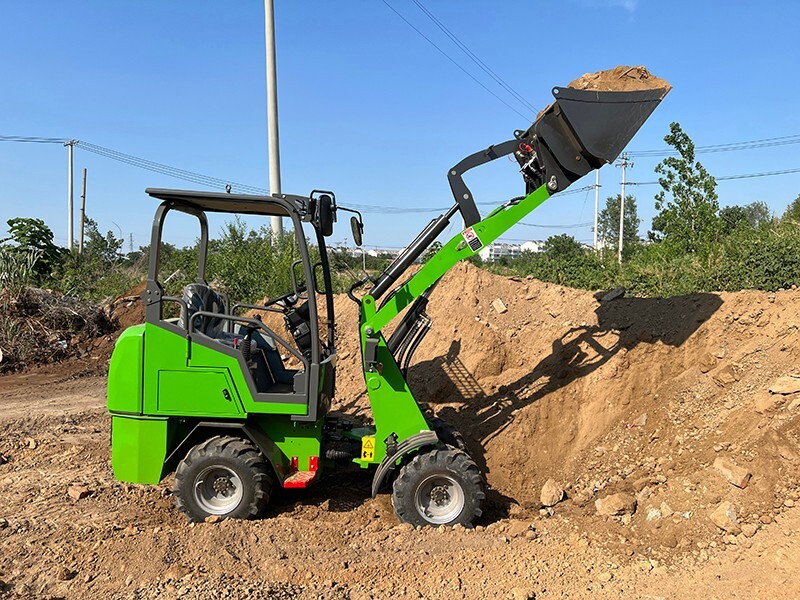

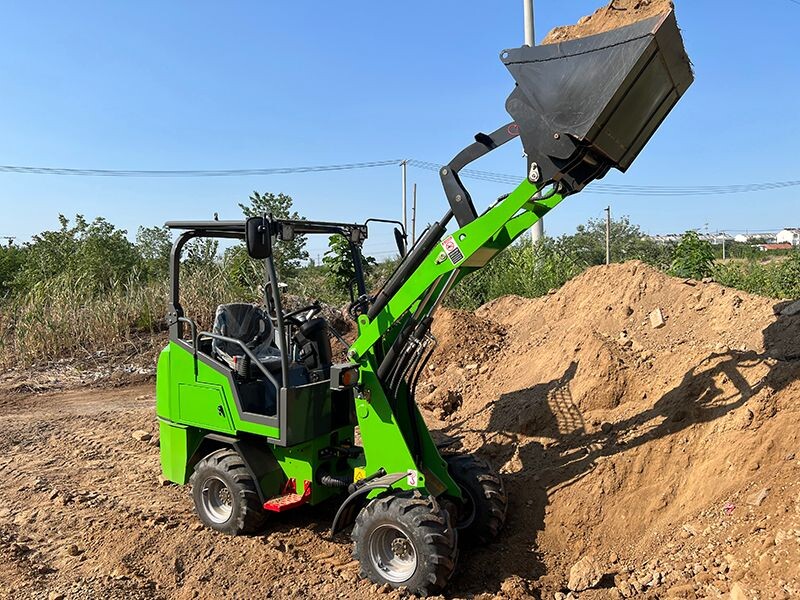

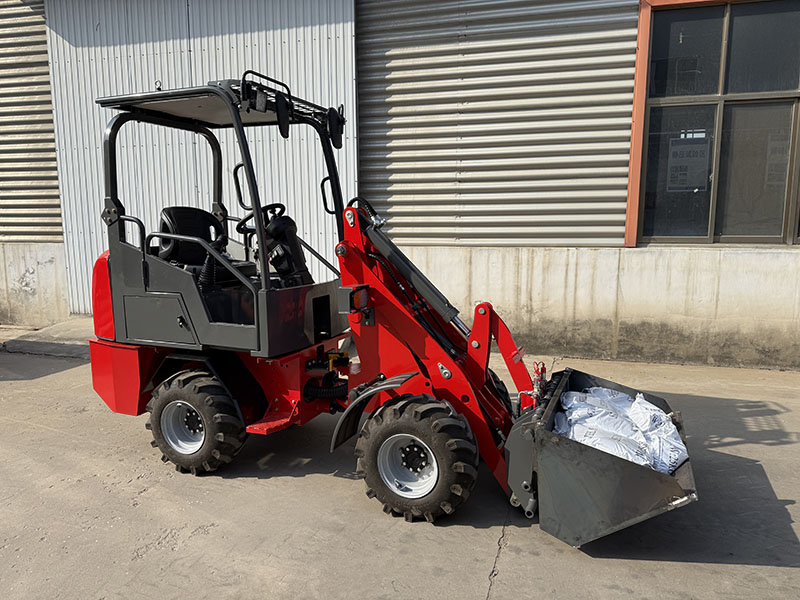

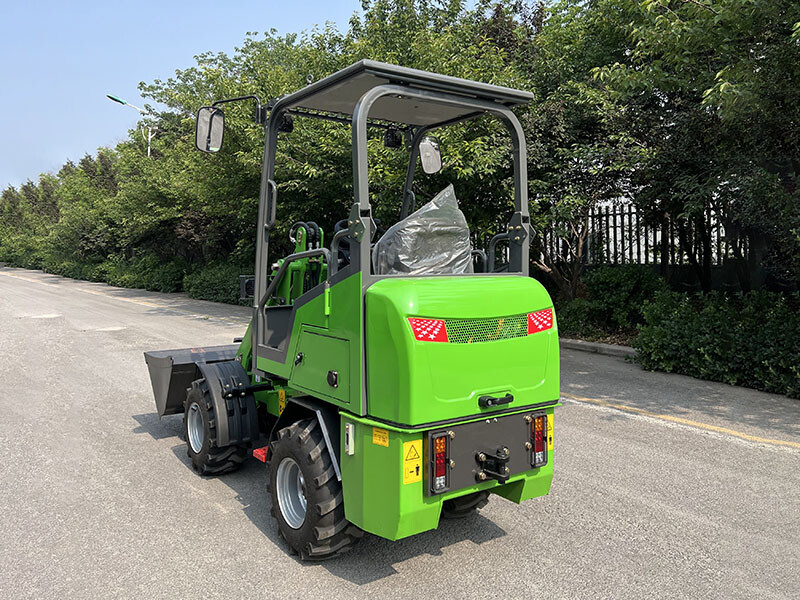

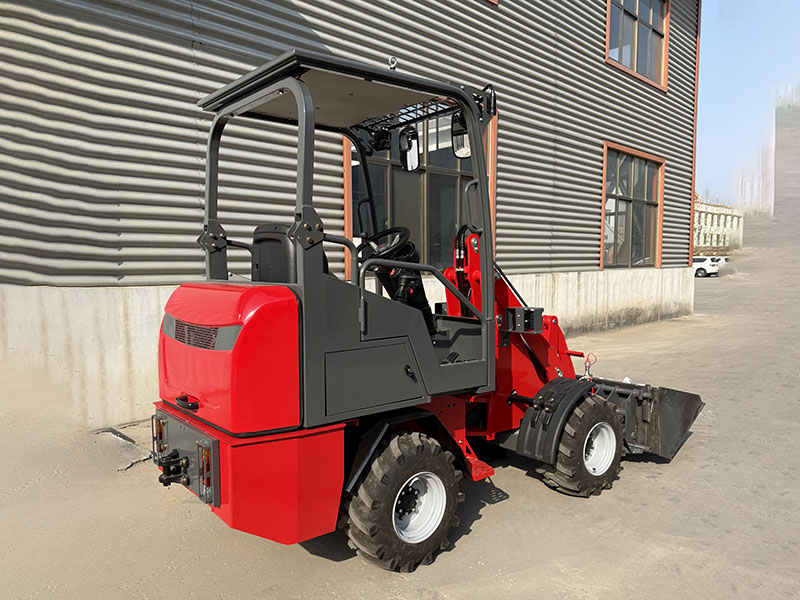

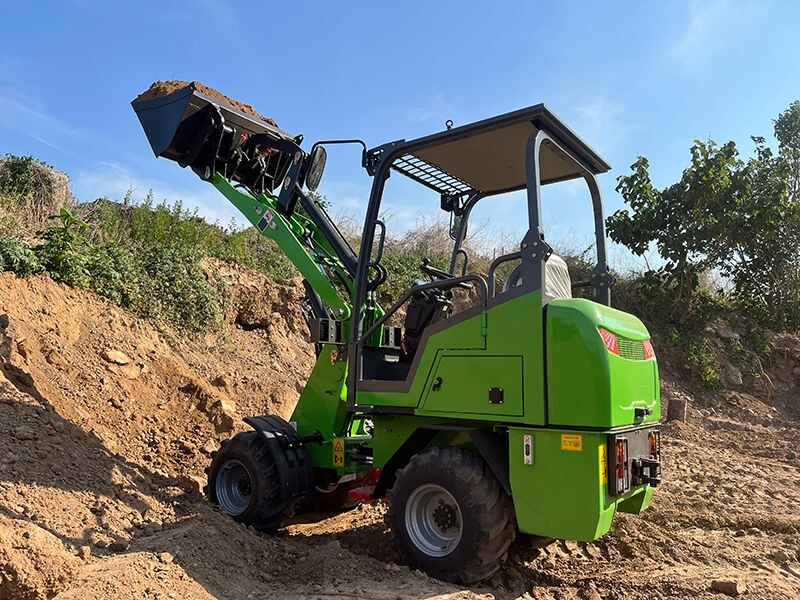

Electric Wheel Loader
K2006E
A new level of operator comfort with proven performance
A new level of operator comfort:
● Low vibration, low noise level, no exhaust fumes
● Entry from both sides
● Comfort cabin
● Electric control joystick
● Fully self-designed gear mechanism ensures the noise level as little as possible
Open up new opportunities
● Perfect for noise sensitive areas
● Work indoors and in emission-sensitive zones
Proven performance
● High lifting and breakout forces
● 100% parallel movements, outstanding lifting height and forward visibility for fork applications
● Articulated-oscillating center joint provides the best off-road capability and stability
MAIN SPECIFICATIONS
| Performance | 1 | Rated load | kg | 600 (Max 800) |
| 2 | Operating weight | kg | 1980 | |
| 3 | Rated bucket capacity | CBM | 0.3 | |
| 4 | Max breakout force | kN | 1000 | |
| 5 | Max grade ability | % | 30 | |
| 6 | Max dump height | mm | 1780 | |
| 7 | Max lift height | mm | 3140 | |
| 8 | Overall dimension (L×W×H) | mm | 3840*1160*2330 (with bucket) | |
| 9 | Dumping reach | mm | 980 | |
| 10 | Wheel base | mm | 850 | |
| 11 | Min ground clearance | mm | 240 | |
| 12 | Max travel speed | km/h | 20/8 (high/low) | |
| 13 | Max. Turning Angel | ° | 30°+/-1° | |
| 14 | Swing degree of the rear axle | ° | 7° | |
| Power | 15 | Battery Model | 6-EVF-203A SLA maintenance-free battery | |
| 16 | Single battery voltage | V | 6 | |
| 17 | Number of batteries | 12 | ||
| 18 | Rated voltage | V | 72 | |
| 19 | Working hours | 4-6h | ||
| 20 | Rated capacity | Ah | 200Ah | |
| Hydraulic system | 21 | System working pressure | Mpa | 16 |
| 22 | hydraulic pump displacement | ml/r | 18 | |
| 23 | hydraulic pump motor power | W | 5000 | |
| 24 | hydraulic pump motor rpm | rpm | 800-2000 | |
| 25 | hydraulic flow | L/min | 14.4-36 | |
| 26 | Hydraulic oil tank capacity | L | 30 | |
| Brake system | 27 | Service brake | Drum brake | |
| 28 | Brake drum | mm | 250 | |
| 29 | Brake fluid capacity | L | 0.8 | |
| 30 | Parking brake | Drum brake | ||
| Tire | 31 | Tire size | 26*12.00-12 | |
| 32 | Tire working pressure | Mpa | 0.3 | |
| Specifications and characteristics are subject to change without notice. Please contact us for detailed information. | ||||
Frequently asked questions
When you say “electric”, does this also include the hydraulics in the machines?
The electric machines have a fully electric power source and hydraulic cylinders and pumps.
How long does the electric wheel loader battery last from fully charged?
Depending on the type of job (application and intensity of the work cycle), with a typical stop-start working pattern, you can operate the machine for up to an 8 hour working day with one single charge.
You can contact your local dealer to calculate the net operating time. The expected operating time is based on your input on how you plan to operate your machine. Have a look at our dealer locator to find your closest dealer and they will help you further.
How long does the electric excavator battery last from fully charged?
Depending on the type of job (application and intensity of the work cycle), with a typical stop-start working pattern, you can operate the machine for up to 4 hours with one single charge.
You can contact your local dealer to calculate the net operating time. The expected operating time is based on your input on how you plan to operate your machine. Have a look at our dealer locator to find your closest dealer and they will help you further.
Does the electric wheel loader recover any energy during operation?
The electric loader recovers energy in all driving conditions while using the brake function of the electric drive system.
Can electric construction machines work on very cold or very warm temperatures?
The performance of the Volvo electric excavator and electric loader has been successfully tested on ambient temperatures between -10°C and 40°C.
