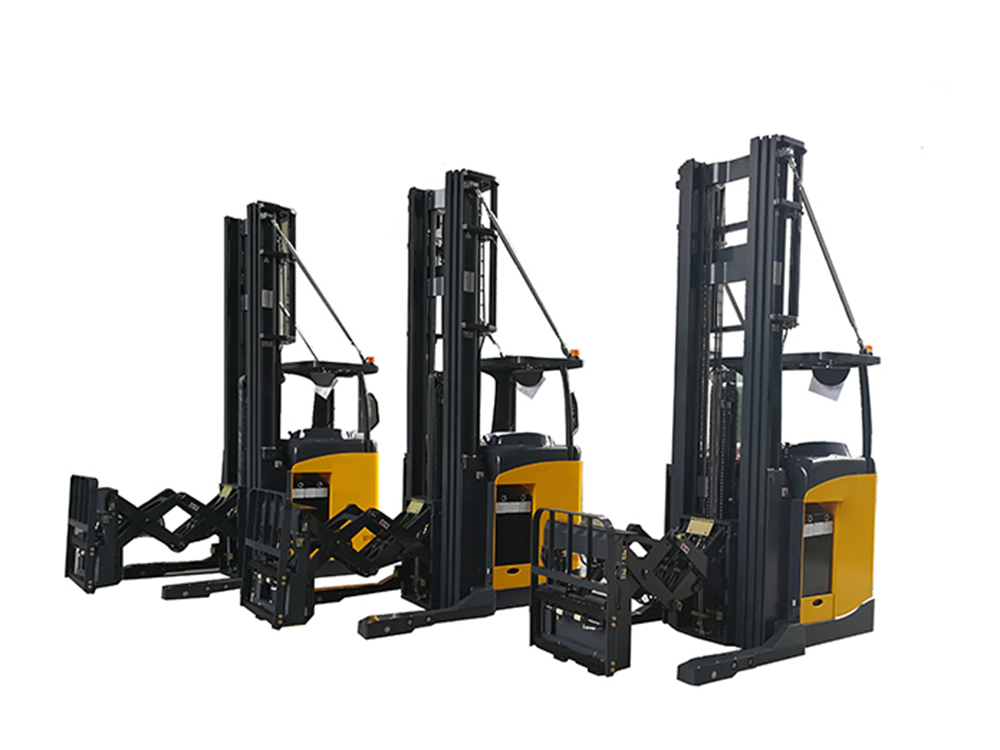

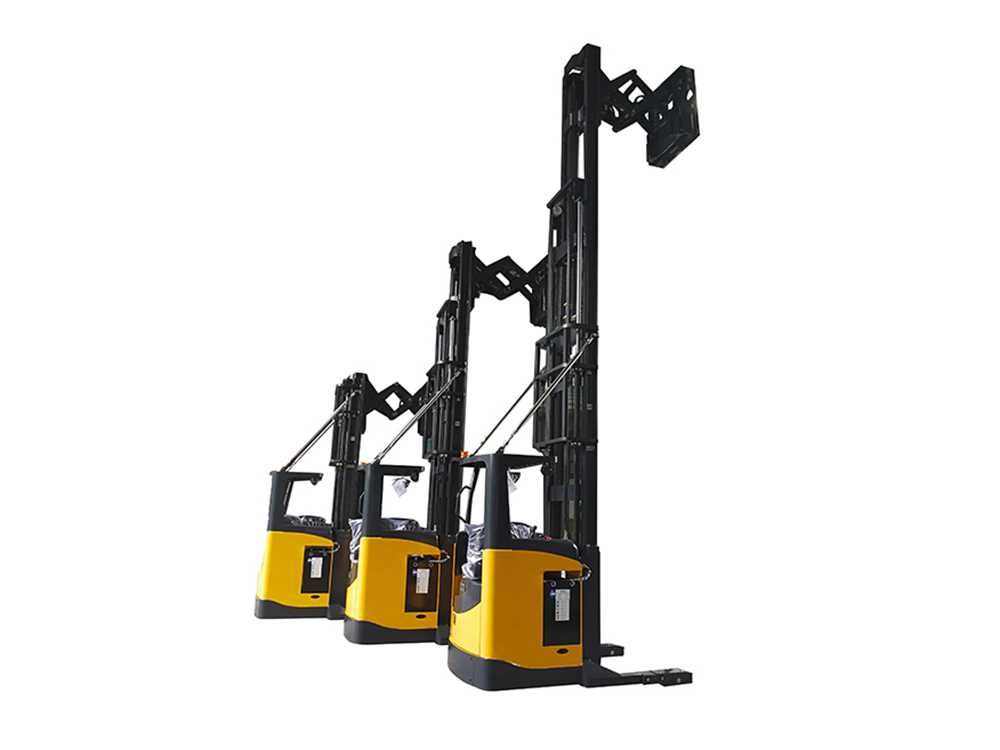

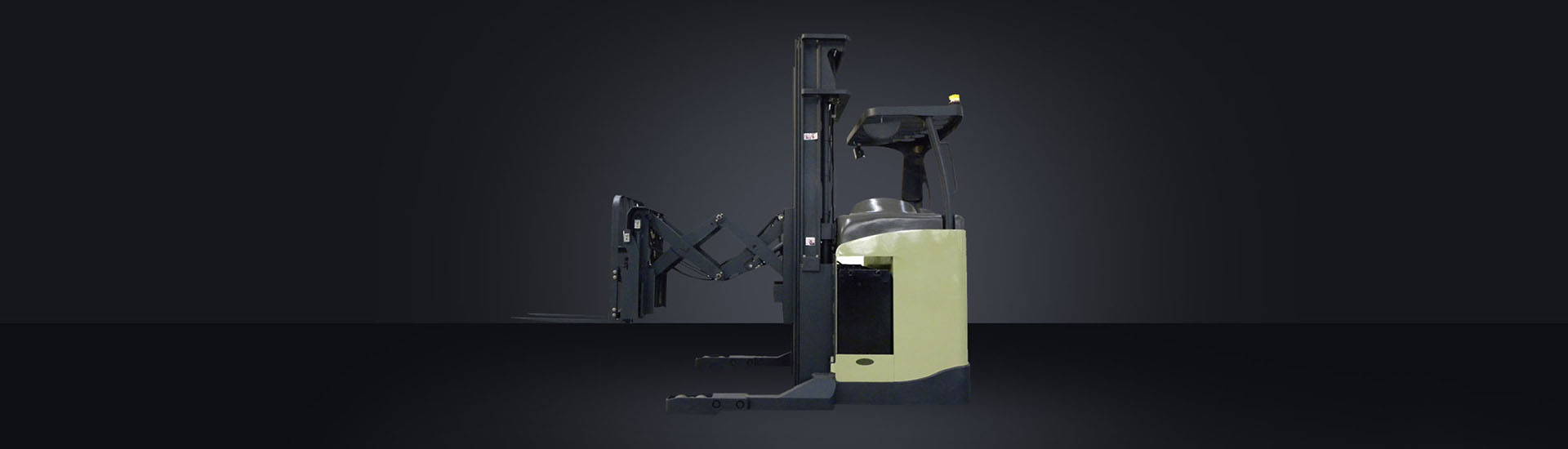

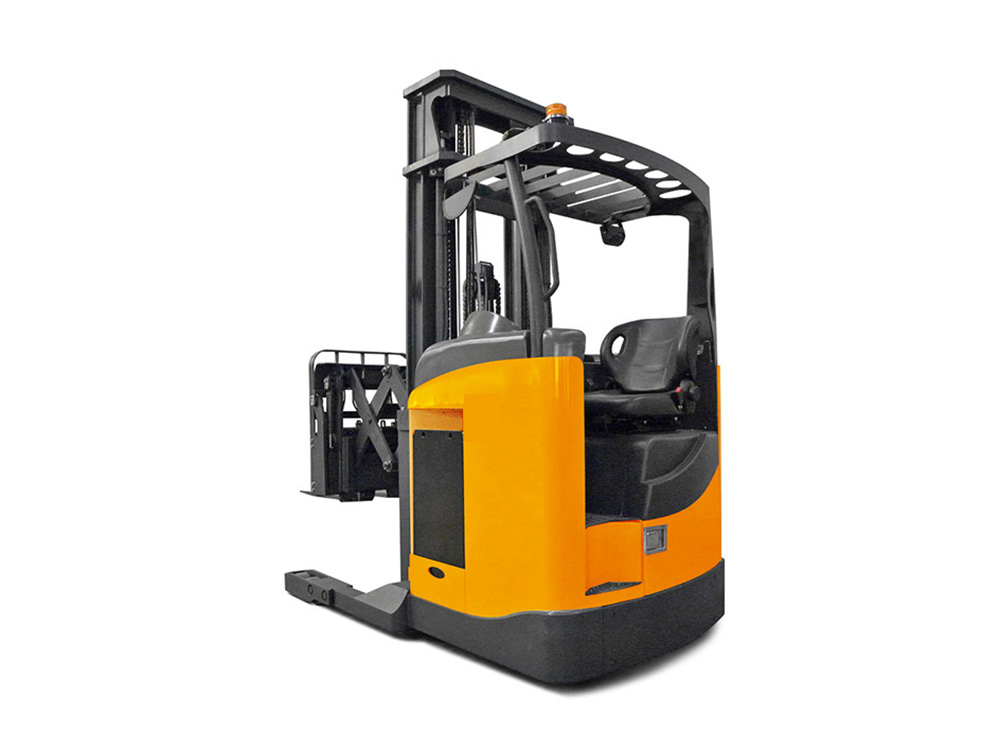

Double deep reach truck

KRT150DD

4060kg
1500kg

Thanks to the fantastic design, KRT150DD Reach Truck has a 920mm reach distance fork carriage that lets you run your operations at a new level. Its powerfully efficient AC Drive and Lift Motors offer superior acceleration, travel, and lift/lower speeds to maximize throughput while minimizing downtime. Its intelligent design empowers operators to complete tasks confidently shift after shift.

This reach truck provides optimal visibility when reaching a second-level pallet position. Increased range of vision leads to greater productivity and fewer errors by operators.

Contact Us

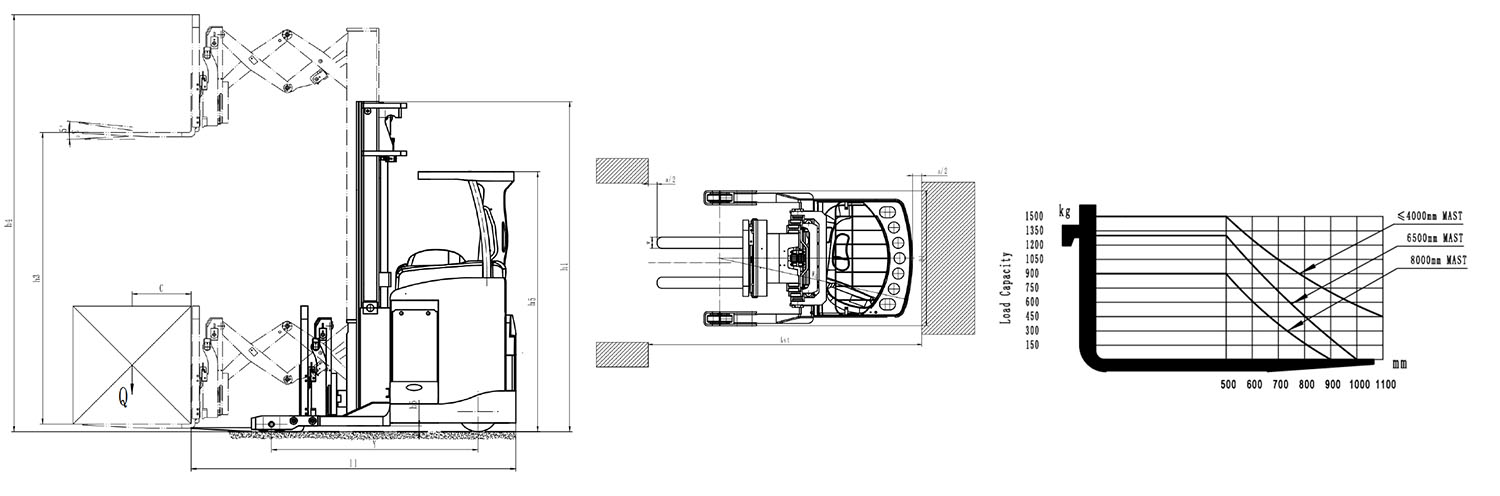

MAIN SPECIFICATIONS

Specification1Model
KRT150DD
2Power
Battery
3Operation
Sit-on
4Rated load capacitykg1500
5Load centerC mm500
6Lift heightH3 mm6000
7Free lifgH2 mm200
8Fork size (L*W*T)L/W/T (mm)920*120*35
9F/B (α°/β°)Deg3°/5°
Dimension10Length (to fork face)L1 (mm)2752
11WidthB1 (mm)1450
12Mast lowered heightH1 (mm)2950
13Mast extended height (with backrest)H4 (mm)7045
14Overhead guard heightH5 (mm)2205
15Turning radiusWa (mm)2070
16Ground clearanceH6 (mm)50
17Fork carriage reach distanceX (mm)920
18WheelbaseY (mm)1750
19Front treadB2 (mm)1300
20Working aisle with pallet (1000*1200, 1200 lengthways)Ast (mm)3250
21Working aisle with pallet (800*1200, 800 lengthways)Ast (mm)3325
22Working aisle with pallet (Empty)Ast (mm)3055
Performance23Travel spped (Full load)km/h9
24Travel spped (No load)km/h9.5
25Lifting speed (Full load)mm/s240
26Lifting speed (No load)mm/s360
27Total weight (contains the battery)kg4060
28Battery weightkg756
29Front tyre*2 (Polyurethane)
125*75*4
30Rear tyre*1 (Polyurethane)
343*135
Drive31Drive motorKw6
32Pump motorKw11
33Battery (Standard)V/Ah48/420
34Steering system
Electric
35Service brake
Electromagnetic
36Controller type
AC
37Controller mfg
ZAPI
38Operating pressureMpa16
Specifications and characteristics are subject to change without notice. Please contact us for detailed information.
