Excavator attachments

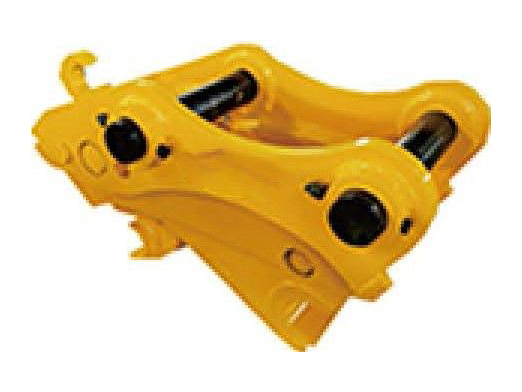

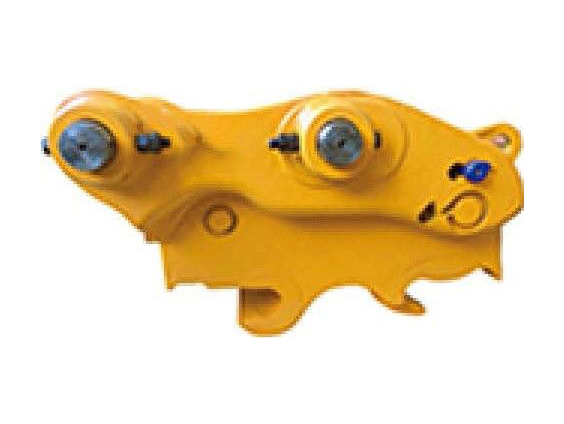

Quick hitch coupler

MAIN SPECIFICATIONS

Model	Length (mm)	Width (mm)	Height (mm)	Arm width (mm)	Pins center distance (mm)	Pin diameter (mm)	Cylinder stroke (mm)	Vertical pins control distance (mm)	Weight (kg)	Working pressure (kgf/c㎡)	Necessary flow (l/min)	Fit to excavator (ton)
KS-mini	300-450	150-250	225-270	82-180	95-220	20-45	95-200	170-190	30-40	30-400	10-20	1-4
KS-02	520-542	260-266	312	155-172	220-275	40-45	200-300	200-210	50-75	30-400	10-20	4-6
KS-06	760	351-454	400	230-317	350-400	50-70	340-440	240-255	170-210	30-400	10-20	12-16
KS-08	920-955	450-483	512	290-345	430-480	70-90	420-510	300	350-390	30-400	10-20	18-25
KS-08S	950-1000	445-493	512-540	300-350	450-505	90	450-530	320	370-410	30-400	10-20	25-26
KS-10	965-1100	543-572	585	345-425	485-530	90-100	460-560	350-370	410-520	30-400	10-20	26-30
KS-17	1005-1150	602-666	560-615	380-480	520-630	100-110	500-650	370-380	55-750	30-400	10-20	30-40
