  • KTF60 ROUGH TERRAIN FORKLIFT
  • KTF60 ROUGH TERRAIN FORKLIFT

›

Rough Terrain Forklift

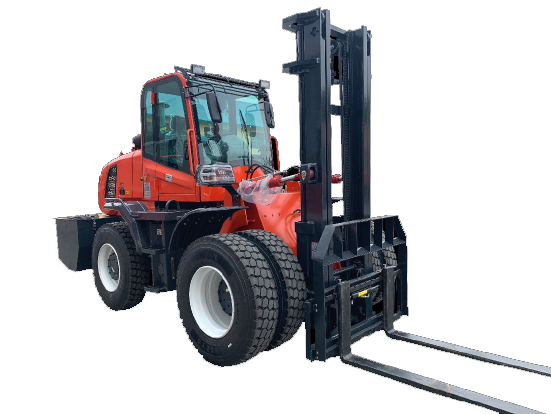

KTF60 ROUGH TERRAIN FORKLIFT
Contact Us

MAIN SPECIFICATIONS

Performance1    Rated load kg6000
2   Overall weight kg6500
3  Maximum tractive force kN35
4 Maximum grade ability°38
5 Standard lifting height with 2 stage mastmm4000
6Option lifting height with triple mastmm6000
7   Load center distancemm600
8  Overall dimension (L×W×H) mm4600*2200*2850
9Minimum turning radiusmm3800
10Maximum steering angle°30°
11Mast tilt angle (forward/backward)°10°/8°
Engine12Model
Cummins QSF2.8
13Cylinders
4
14     Rated powerkw@RPM54kw@2400
15Peak torque Nm@RPM300Nm@1600
16Emission standard
EPA4
Others17   Wheel base mm2400
18Mast widthmm180
19Fork lengthmm1520
20Min ground clearancemm380
Brake system21  Service brake
Air brake
Tire22Standard tire size
12R22.5 tubeless
Specifications and characteristics are subject to change without notice. Please contact us for detailed information.
